3-95

Confidential

9.28

ADF Cover/Document Detection Sensor PCB ASSY/

First Side Document Scanning Position Sensor PCB ASSY/

Second Side Document Scanning Position Sensor PCB

ASSY (Duplex Scanning Model Only)

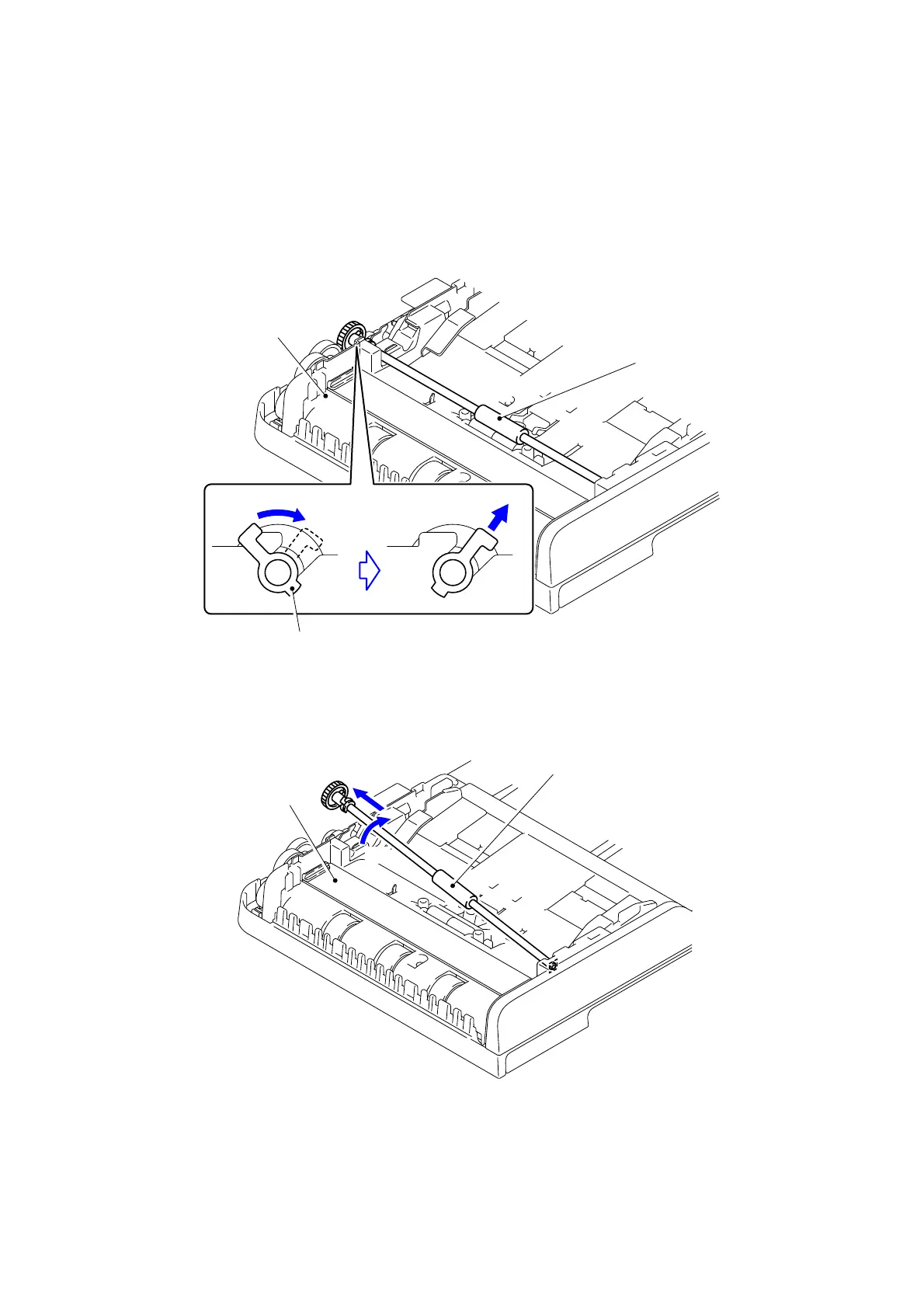

(1) Rotate the Conductive bushing to release the lock.

Fig. 3-111

(2) Remove the Document feed roller ASSY 1 from the ADF unit.

Fig. 3-112

Conductive bushing

ADF unit

Document feed roller ASSY 1

ADF unit

Document feed roller ASSY 1

Default Chapter4
