3-96

Confidential

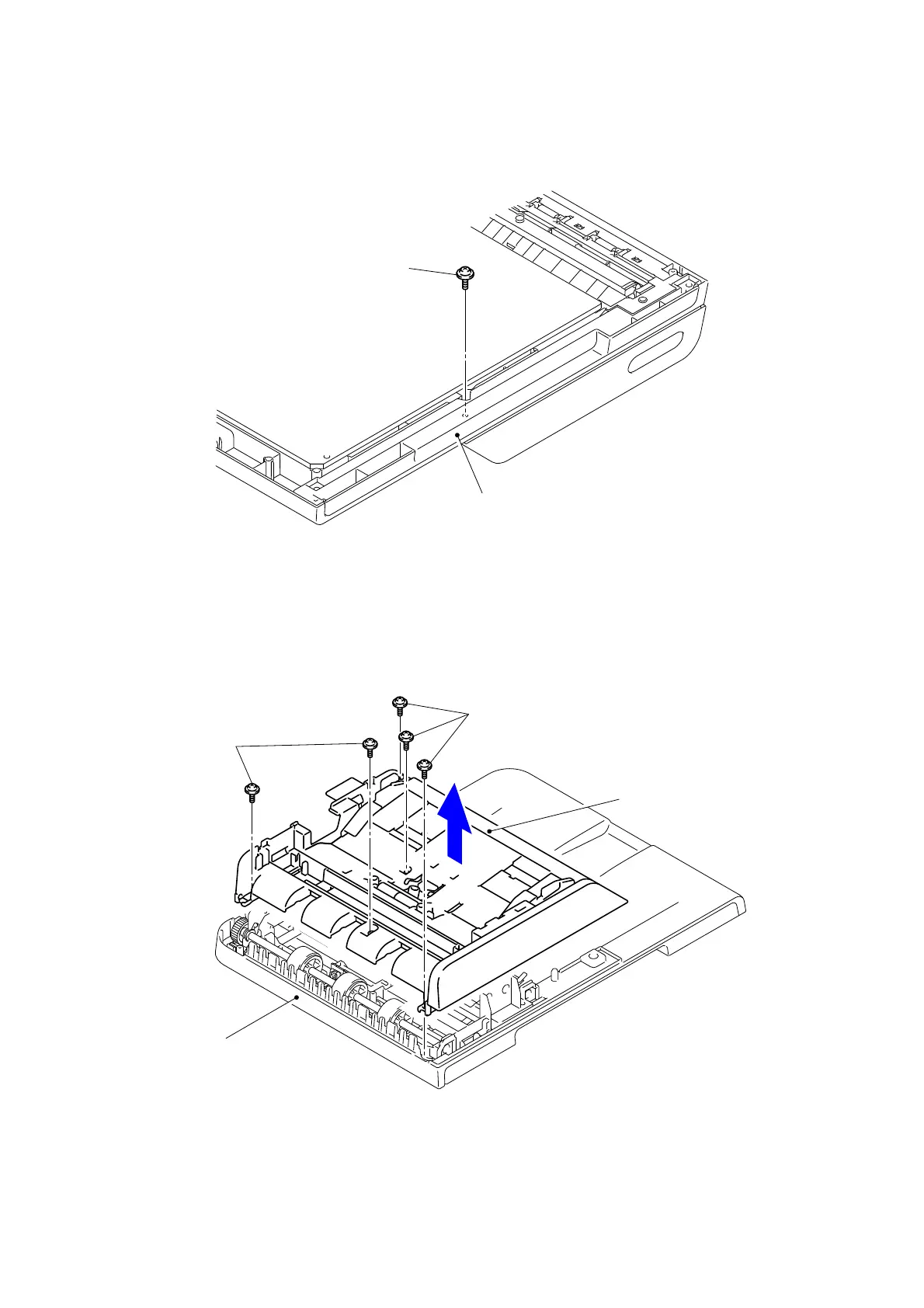

(3) Turn the ADF unit upside down.

(4) Remove the Taptite cup B M3x10 screw from the ADF unit.

Fig. 3-113

(5) Turn the ADF unit right side up.

(6) Remove the five Taptite cup B M3x10 screws from the Upper ADF chute.

(7) Remove the Upper ADF chute from the ADF unit.

Fig. 3-114

Taptite cup B M3x10

ADF unit

Upper ADF chute

Taptite cup B M3x10
