9.59 Eject Sensor PCB ASSY

(1) Release the wiring of the Eject sensor PCB ASSY.

(2) Release the Hook and remove the Eject sensor PCB ASSY from the Main body.

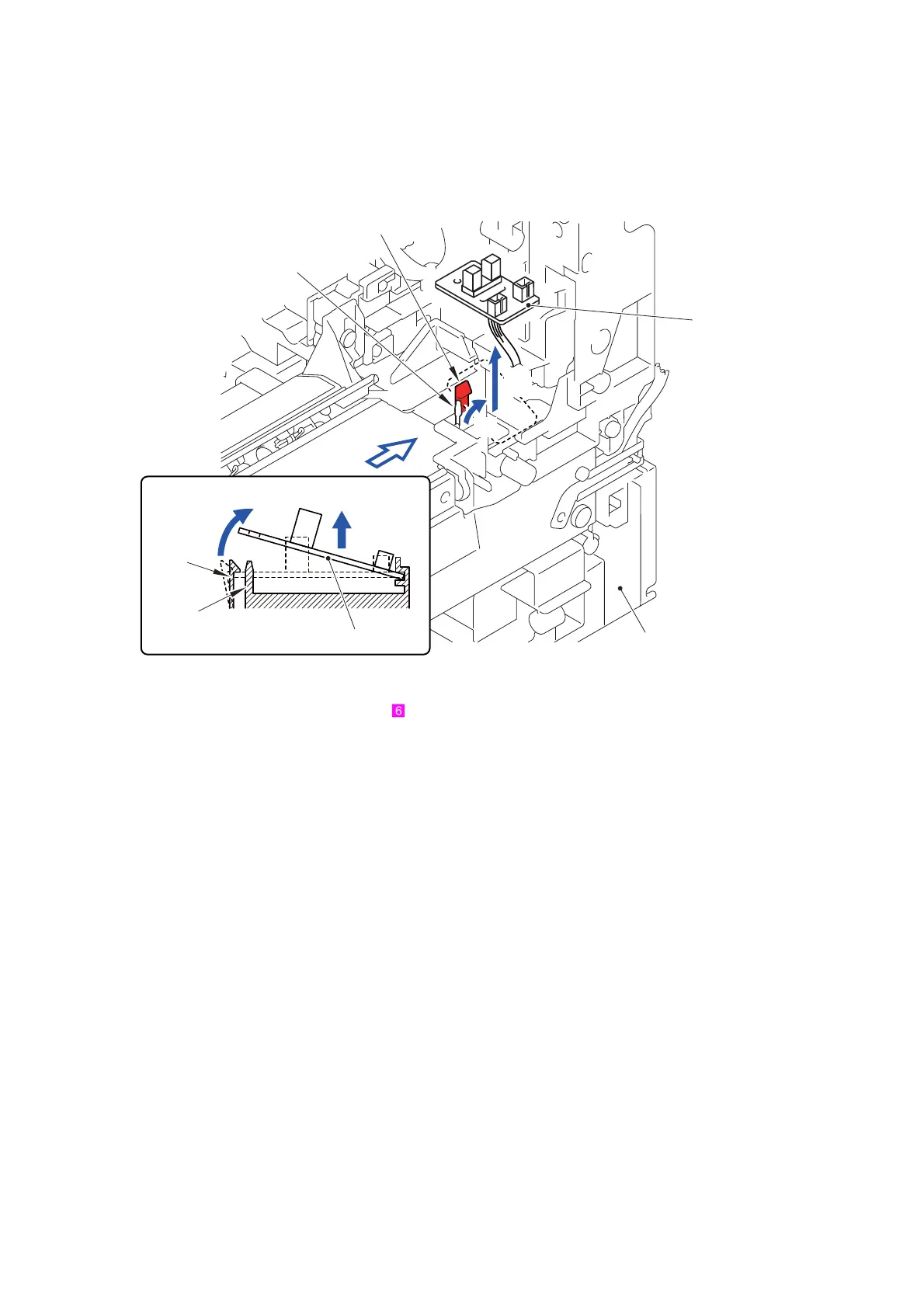

Fig. 3-224

Harness routing: Refer to “ Eject Sensor PCB ASSY, Fuser Unit”

Hook

Eject sensor PCB ASSY

Main body

Hook

A view

Eject sensor

PCB ASSY
