3-138

Confidential

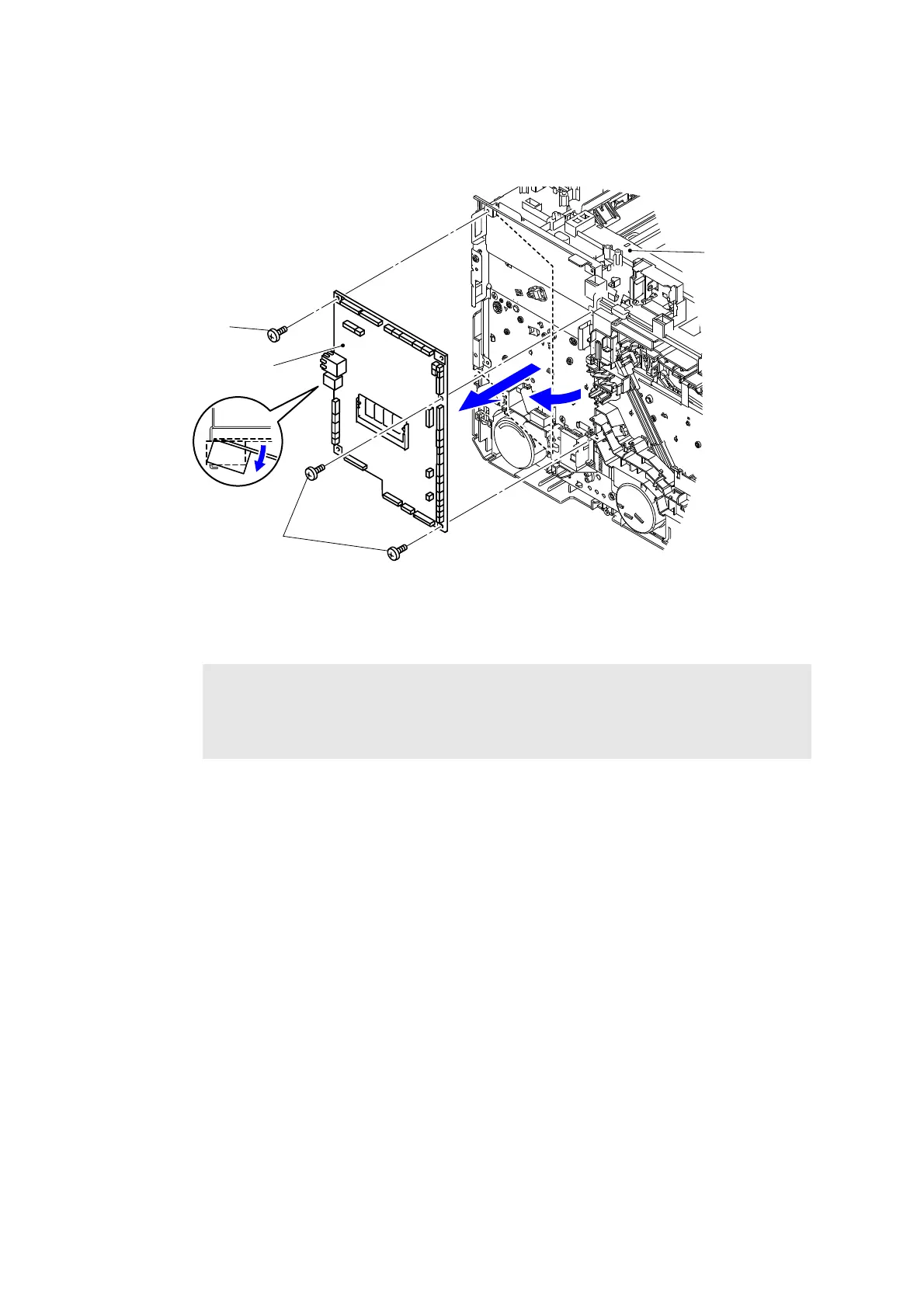

(2) Remove the three Screw bind M3x6 screws and remove the Main PCB ASSY from the

Main body.

Fig. 3-188

Note:

Note that the tightening torque is different between the upper/middle side and lower

side of the Screw bind M3x6.

Upper/Middle side: 0.5±0.05 N

·m

Lower side: 0.8±0.1 N

·m

Main PCB ASSY

Main body

Screw bind M3x6

(Upper side)

(Lower side)

(Middle side)
