(3) Remove the Front cover release button spring from the Front cover.

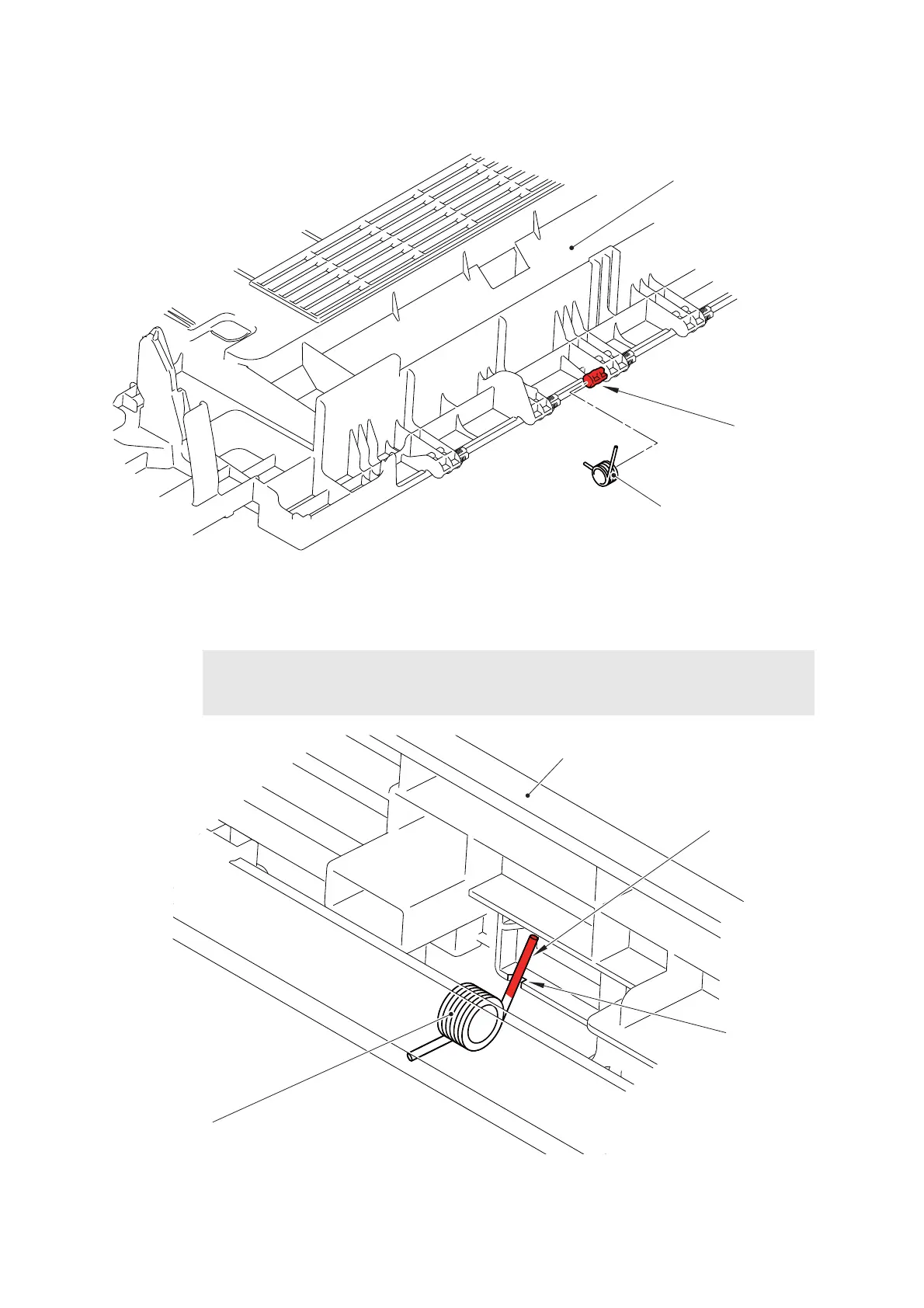

Fig. 3-47

Fig. 3-48

Assembling Note:

When assembling the Front cover release button spring, attach “A” of the Front cover

release button spring to the cutout of the Front cover release button.

Front cover

Boss

Front cover

release button spring

“A”

Cutout

Front cover release button

Front cover

release button spring

Default Chapter4
