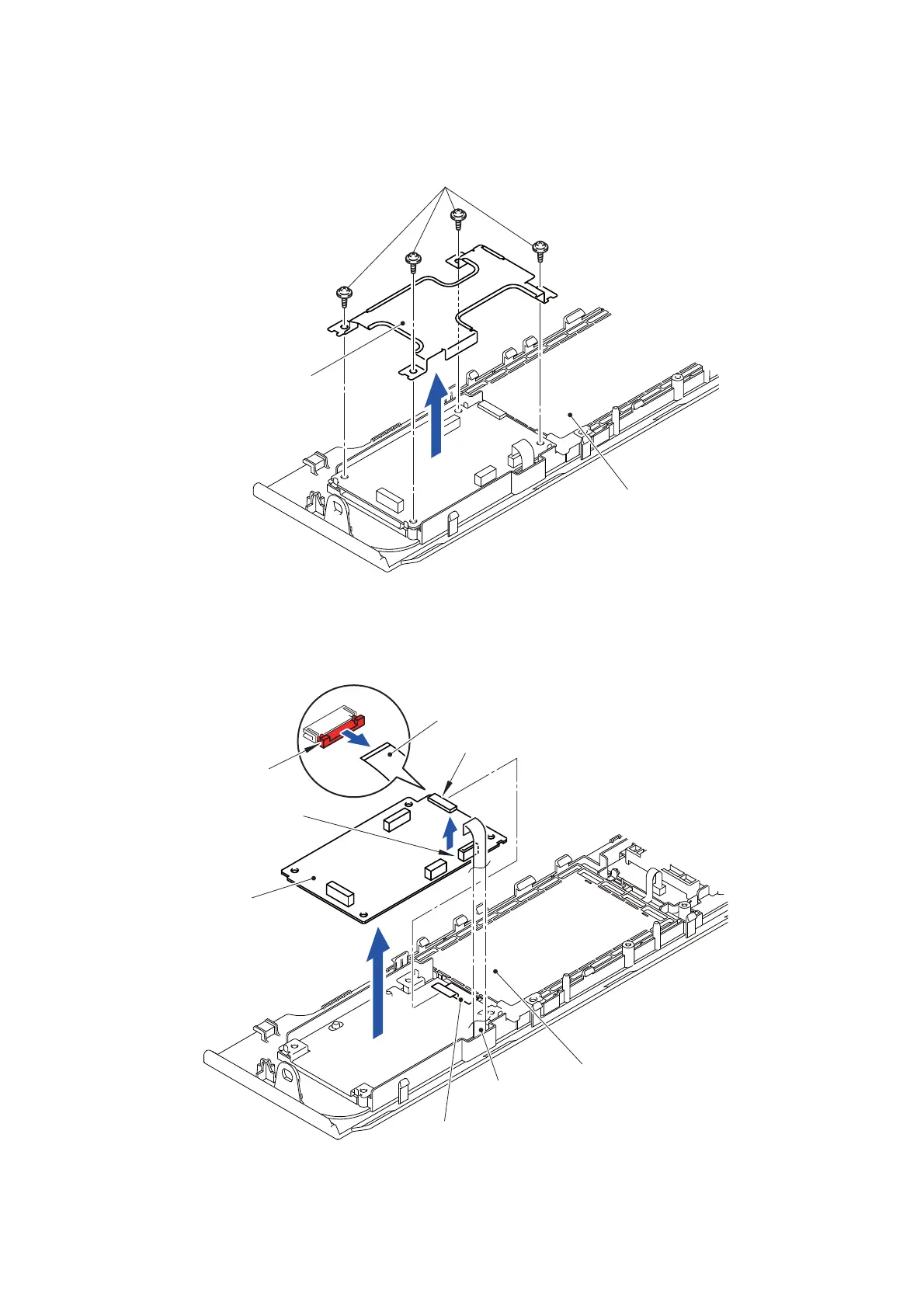

(4) Remove the four Taptite cup B M3x10 screws and remove the Panel control PCB shield

plate cover from the Control panel ASSY.

Fig. 3-143

(5) Release the Lock and disconnect the Flat cable (CN1) of the Panel PCB unit.

(6) Disconnect the Flat cable (CN2) from the Panel PCB unit. (Model with NFC only)

(7) Remove the Panel PCB unit from the Control panel ASSY.

Fig. 3-144

Taptite cup B M3x10

Panel control PCB

Control panel ASSY

shield plate cover

Control panel ASSY

CN1

Panel PCB unit

CN2

Lock

Flat cable
