3-111

Confidential

■ Legal model

(2) Remove the three Taptite cup B M3x10 screws from the LCD hold plate.

(3) Release the six Hooks and remove the LCD hold plate from the Control panel ASSY.

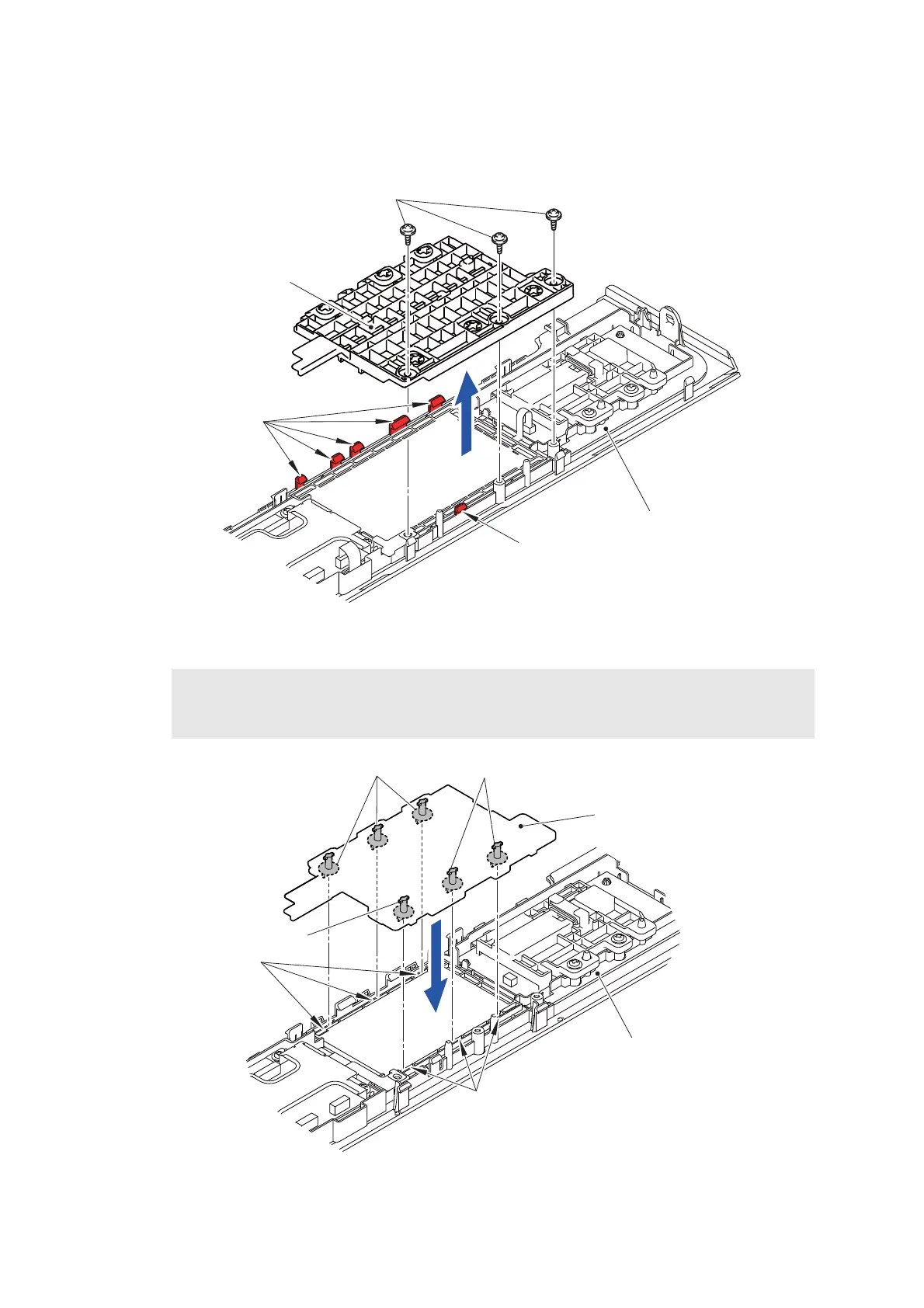

Fig. 3-141

■ A4 model/Legal model

Fig. 3-142

Assembling Note:

When assembling the LCD hold plate to the Control panel ASSY, be sure to assemble it in a

way that LCD hold tab fits in the groove of the LCD.

Taptite cup B M3x10

Hook

LCD hold plate

Control panel ASSY

LCD hold plate

Control panel ASSY

LCD hold tab

Groove
