3-157

Confidential

9.57 Paper Eject Origin Sensor

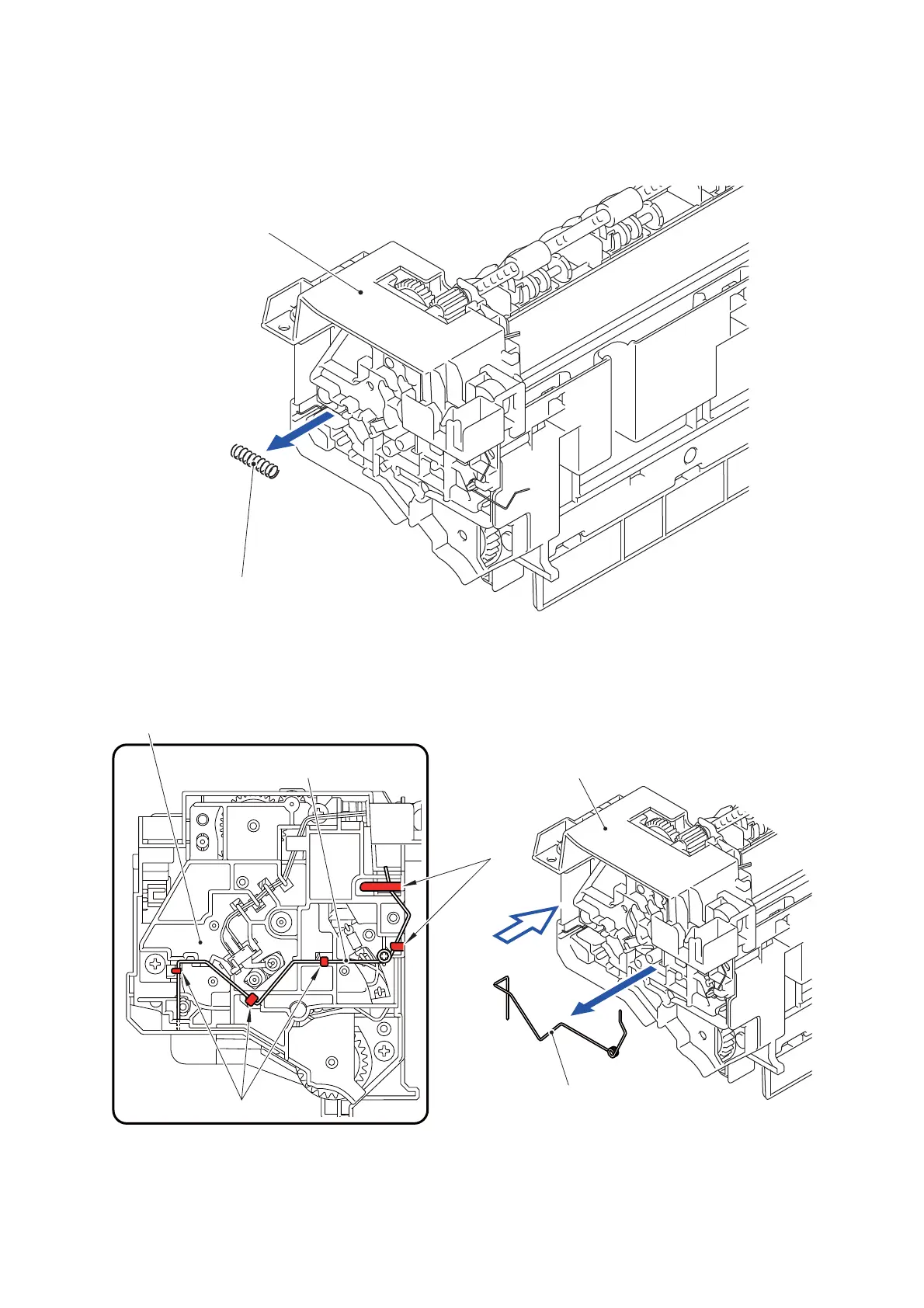

(1) Remove the Eject ground wire 1 from the Paper eject ASSY.

Fig. 3-219

(2) Release the five Hooks and remove the Eject ground wire 2 from the Paper eject ASSY.

Fig. 3-220

Paper eject ASSY

Eject ground wire 1

Hook

Paper eject ASSY

A view

Eject ground wire 2
