(5) Remove the Screw pan (S/P washer) M3.5x6 screw from the Drive ground plate.

(6) Release the Boss and remove the Drive ground plate from the Low-voltage power supply

PCB unit.

(7) Release the wiring of the LVPS-main harness ASSY.

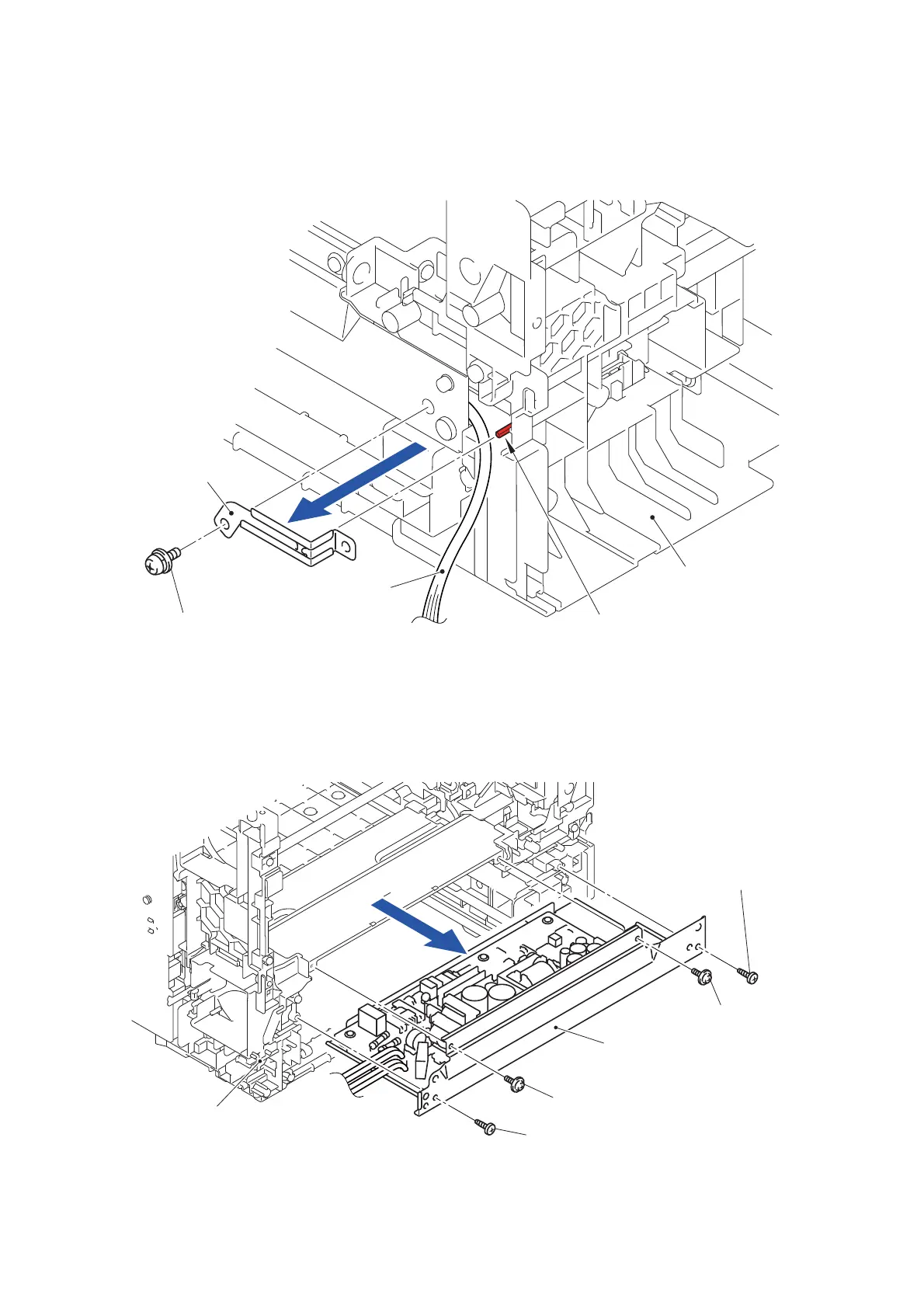

Fig. 3-230

(8) Remove the two Taptite cup S M3x8 SR screws and two Taptite bind B M4x12 screws,

and remove the LVPS plate from the Main body.

Fig. 3-231

Screw pan (S/P washer) M3.5x6

Drive ground plate

Boss

Low-voltage

power supply PCB unit

LVPS-main harness ASSY

Taptite bind B M4x12

Main body

Taptite bind B M4x12

Taptite cup S M3x8 SR

LVPS plate
