3-176

Confidential

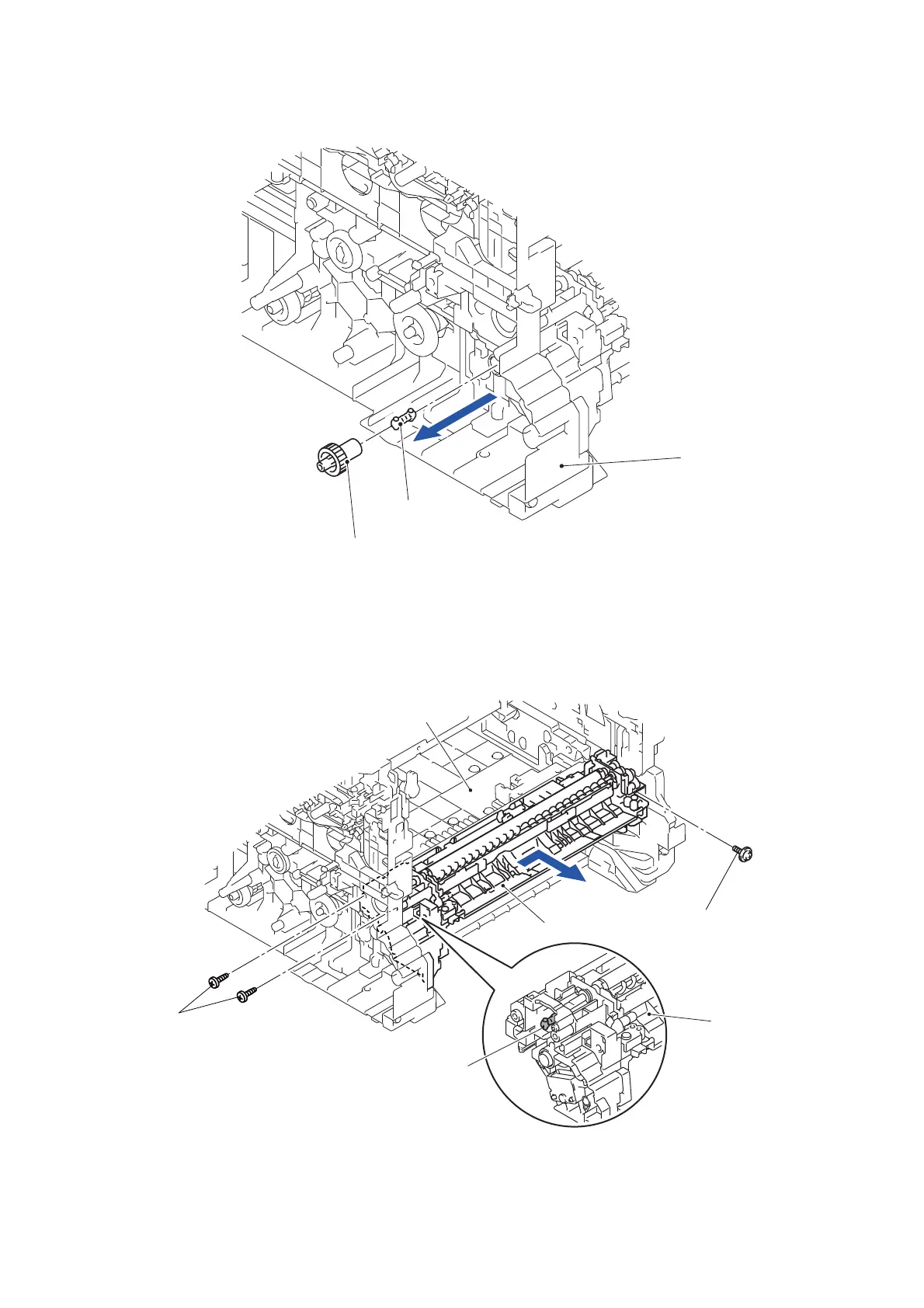

(5) Remove the PF drive gear 21 and PF drive joint from the Main body.

Fig. 3-254

(6) Remove the Taptite cup B M3x12 screw from the Paper feed unit.

(7) Remove the two Taptite bind B M4x12 screws, then shift the Paper feed unit to the right,

and remove it from the Main body.

Fig. 3-255

PF drive gear 21

PF drive joint

Main body

Taptite cup B M3x12

Paper feed unit

Taptite

Main body

bind B

M4x12

Paper feed unit

Registration roller drive joint
