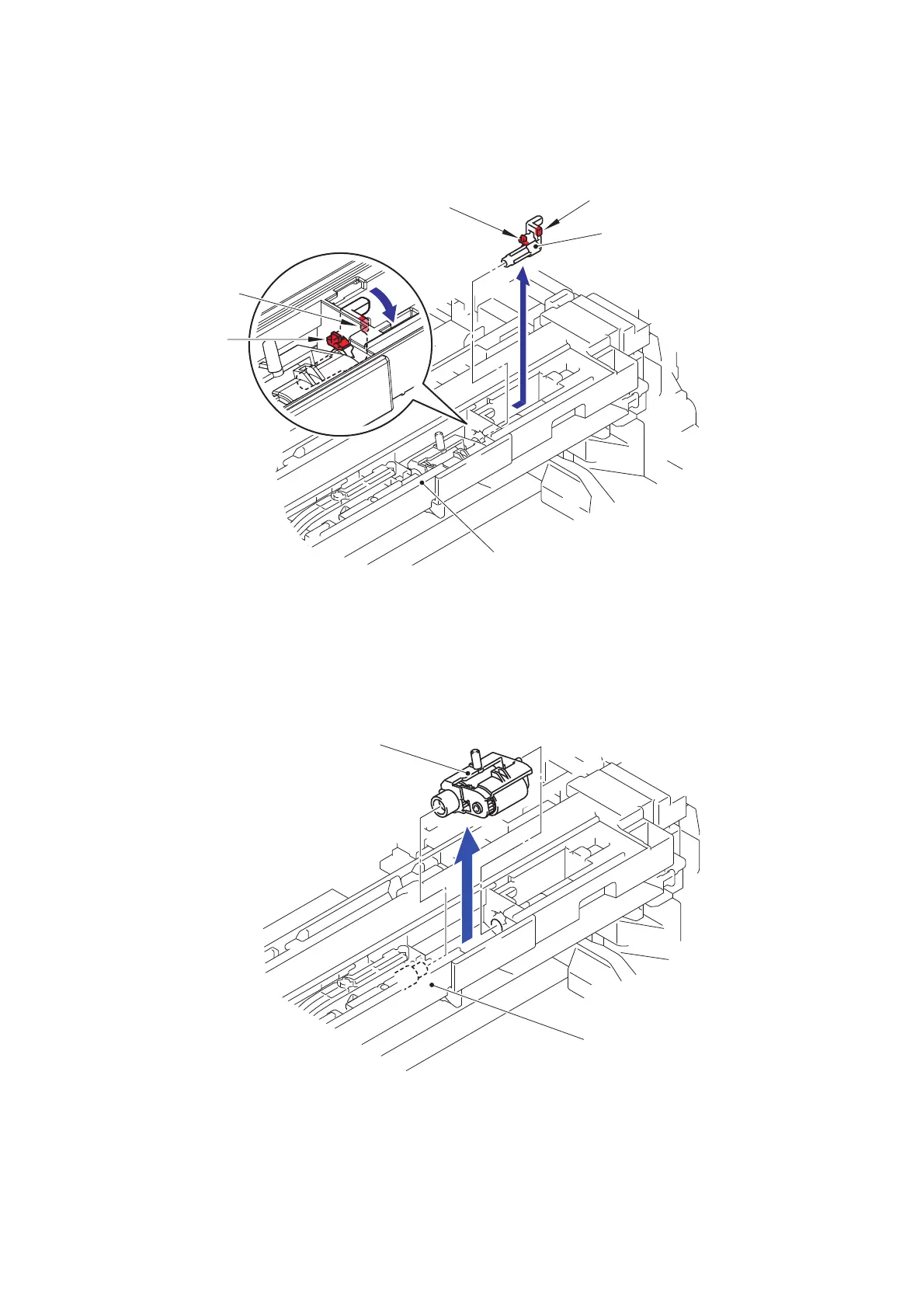

(3) Release the Hook 1 and rotate the MP holder bushing in the direction of the arrow.
(4) Release the Hook 2 and remove the MP holder bushing from the MP upper cover ASSY.
Fig. 7-89
(5) Remove the MP roller holder ASSY from the MP upper cover ASSY.
Fig. 7-90
3
4
Hook 2
MP upper cover ASSY
MP holder bushing
<Front side>
Hook 1
Hook 2
Hook 1
MP upper cover ASSY
MP roller holder ASSY
