HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
4-25
(6) Close the back cover.
(7) Put the drum unit and toner cartridge ASSY back in the printer (press firmly).
(8) Close the front cover.
5. JAM DUPLEX (Paper jam in the duplex tray)
JAM DUPLEX
If a paper jam occurs inside the duplex tray, follow these steps:
(1) Pull the duplex tray completely out of the printer.

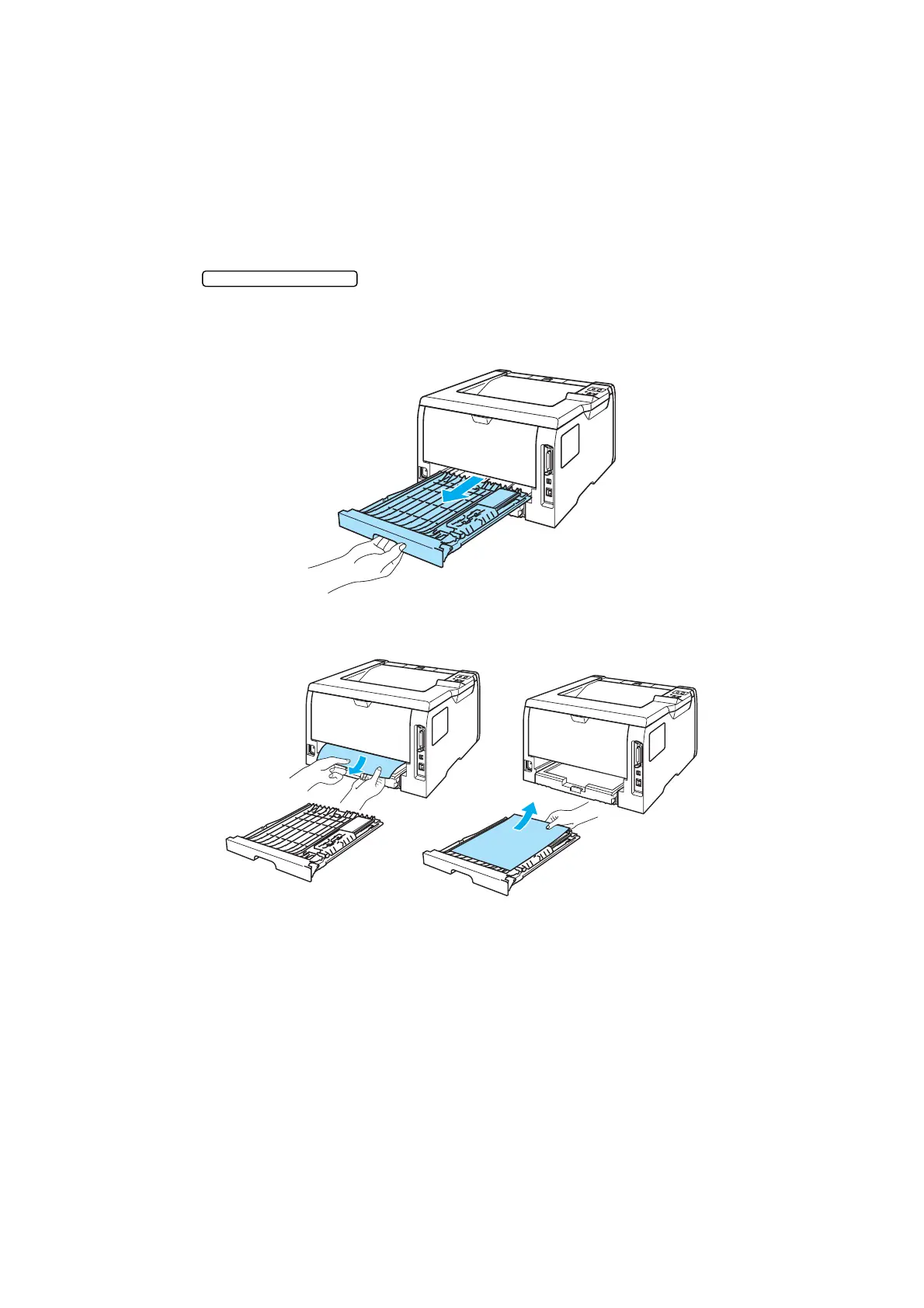

Fig. 4-17
(2) Pull the jammed paper out of the printer or the duplex tray.
Fig. 4-18
(3) Put the duplex tray back in the printer.
