CHAPTER 5 DISASSEMBLY AND RE-ASSEMBLY
Confidential
5-76
7.43 PE EG Sensor ASSY

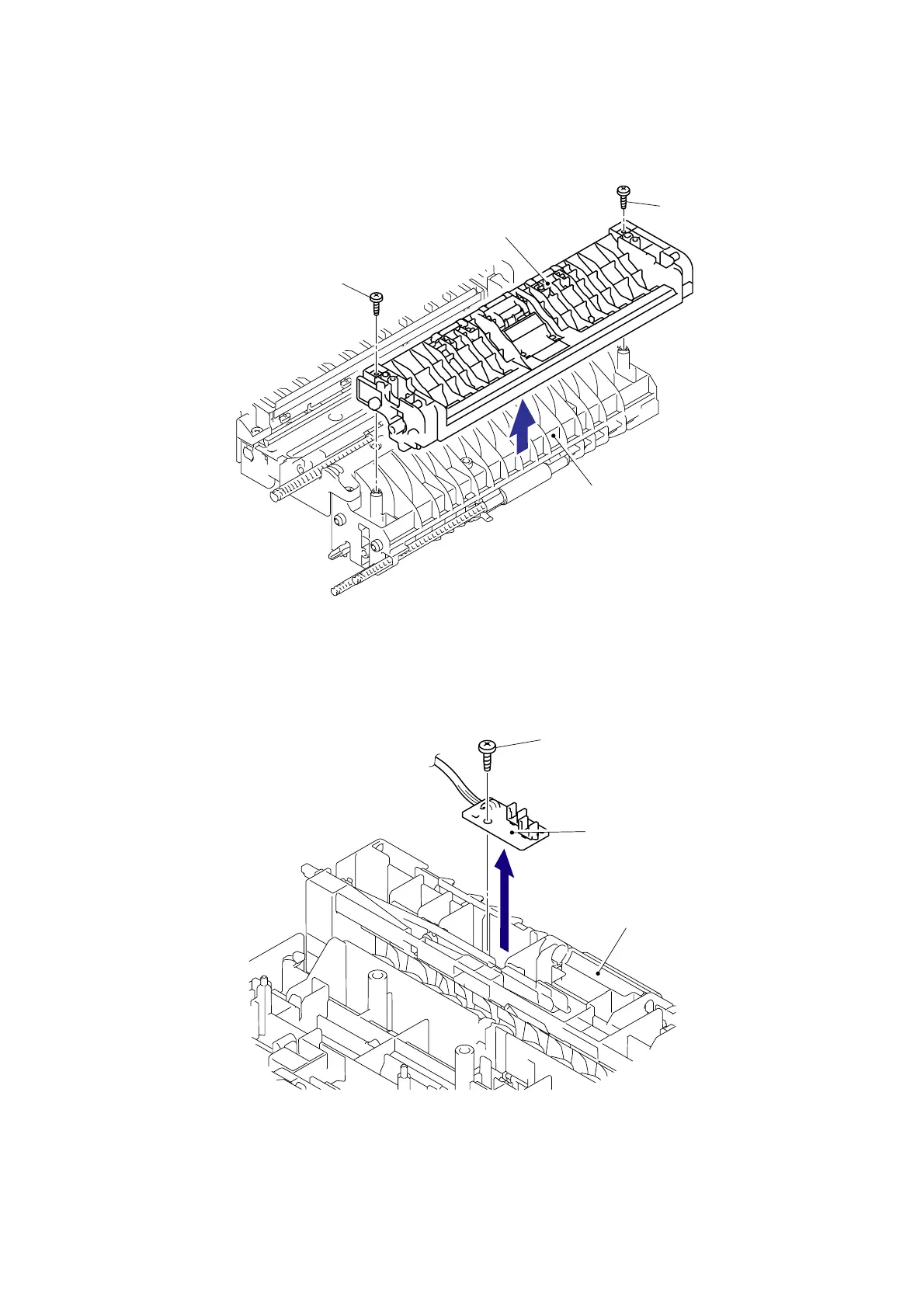

(1) Remove the two bind B M3x8 Taptite screws, and then remove the MP frame.
Fig. 5-123
(2) Remove the bind B M3x8 Taptite screw, and then remove the PE EG sensor ASSY.
Fig. 5-124
PE EG sensor ASSY
Taptite bind B M3x8
Paper feed frame
Paper feed frame
Taptite bind B M3x8
Taptite bind B M3x8
MP frame
