HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
3-17

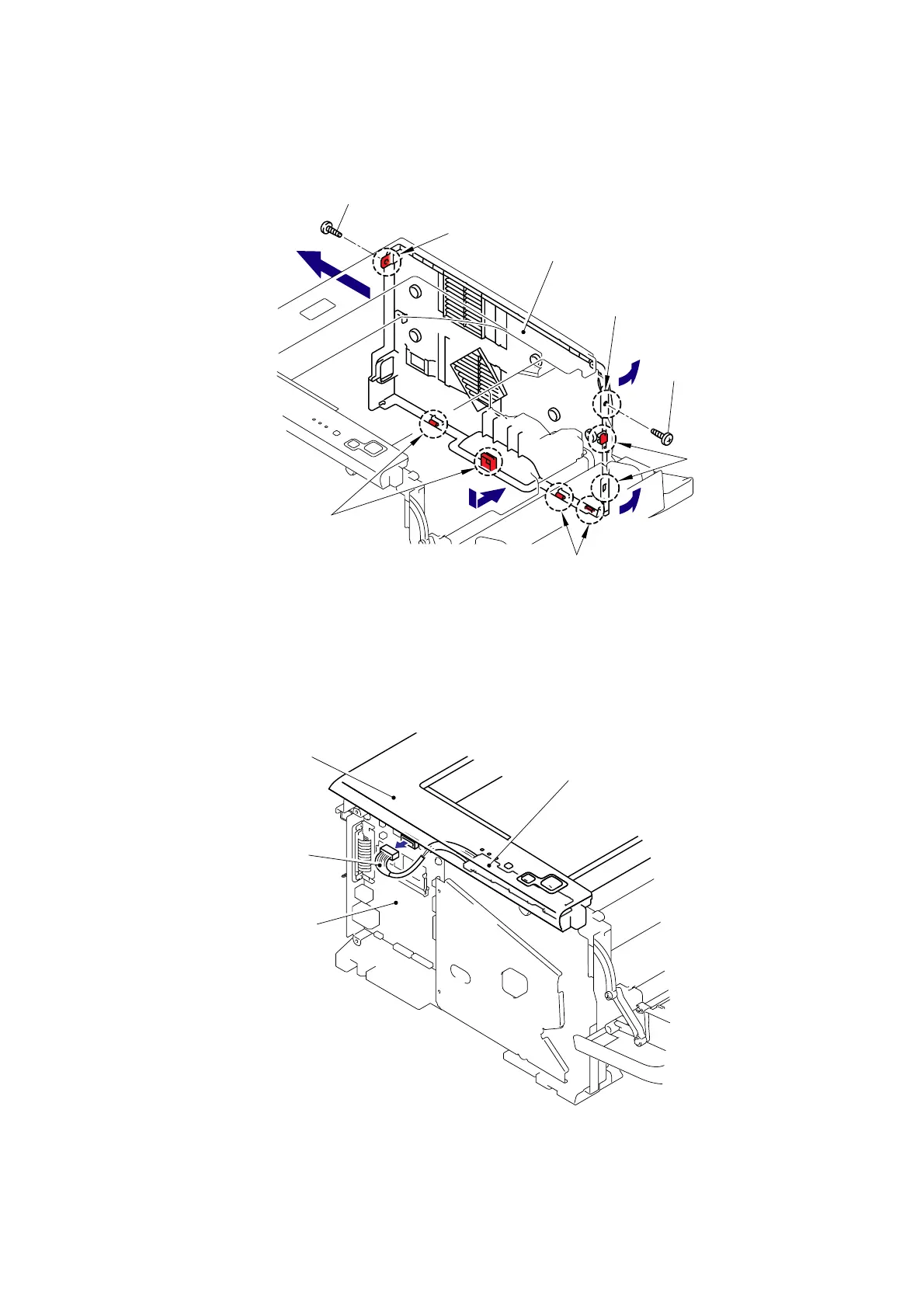

(17) Remove the two bind B M4x12 Taptite screws, and then remove the Side cover R by
following the direction from 17a to 17d.
Fig. 3-27
(18) Disconnect the Connector of the Panel PCB.
Fig. 3-28
Taptite, bind B M4x12
Shield cover R
Taptite, bind B M4x12
Hook
Hooks
Hooks
Hooks
Hook
17a
17b
17c
17d
Top cover printed ASSY
Main PCB
Connector
Panel PCB
<Front side>
