CHAPTER 3 PERIODIC MAINTENANCE
Confidential
3-16

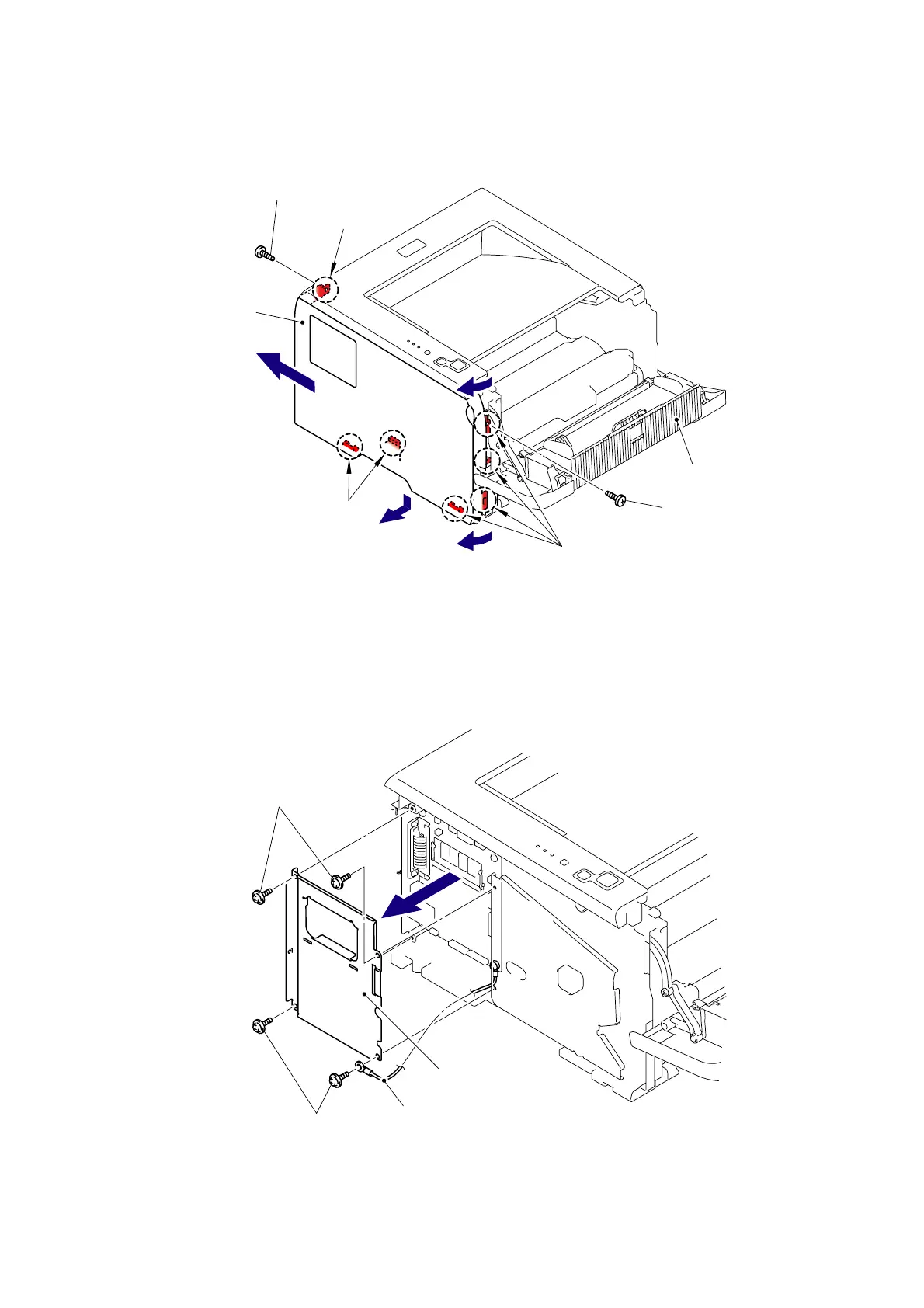

(15) Open the Front cover, remove the two bind B M4x12 Taptite screws, and then remove the
Side cover L by releasing the Hooks in the order of 15a to 15d.
Fig. 3-25
(16) Remove the four cup S M3x6 SR Taptite screws to remove the Shield cover and the FG
harness.
Fig. 3-26
Taptite, bind B M4x12
Taptite, bind B M4x12
Front cover
Side cover L
Hooks
Hooks
Hook
15a
15b
15c
15d
Taptite, cup S M3x6 SR
Shield cover
Taptite, cup S M3x6 SR
FG harness
<Front side>
