HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
3-15

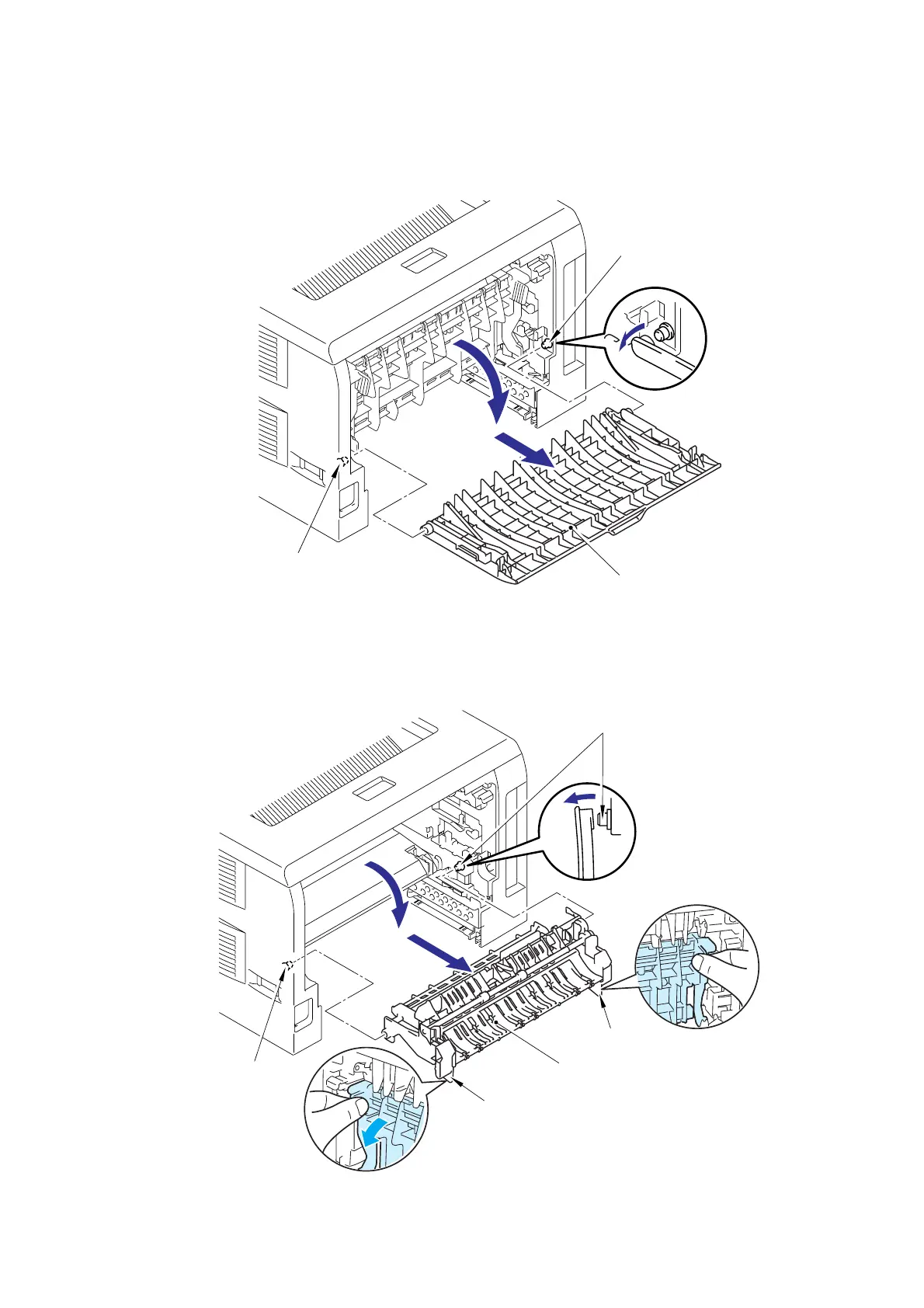

(9) Open the Back cover.
(10) Remove the Arms of the Back cover from the Pins.
(11) Remove the Back cover.
Fig. 3-23
(12) Hold the Knobs on the Outer chute ASSY and pull down this to your side.
(13) Remove the Arms of the Outer chute ASSY from the Pins.
(14) Remove the Outer chute ASSY.
Fig. 3-24
Back cover
Knob
Pin
Pin
Pin
9
10
11
Pin
12
13
3
<Back side>
<Back side>
Outer chute ASSY
Knob
14
12
12
To Next Page
