4-15
Confidential

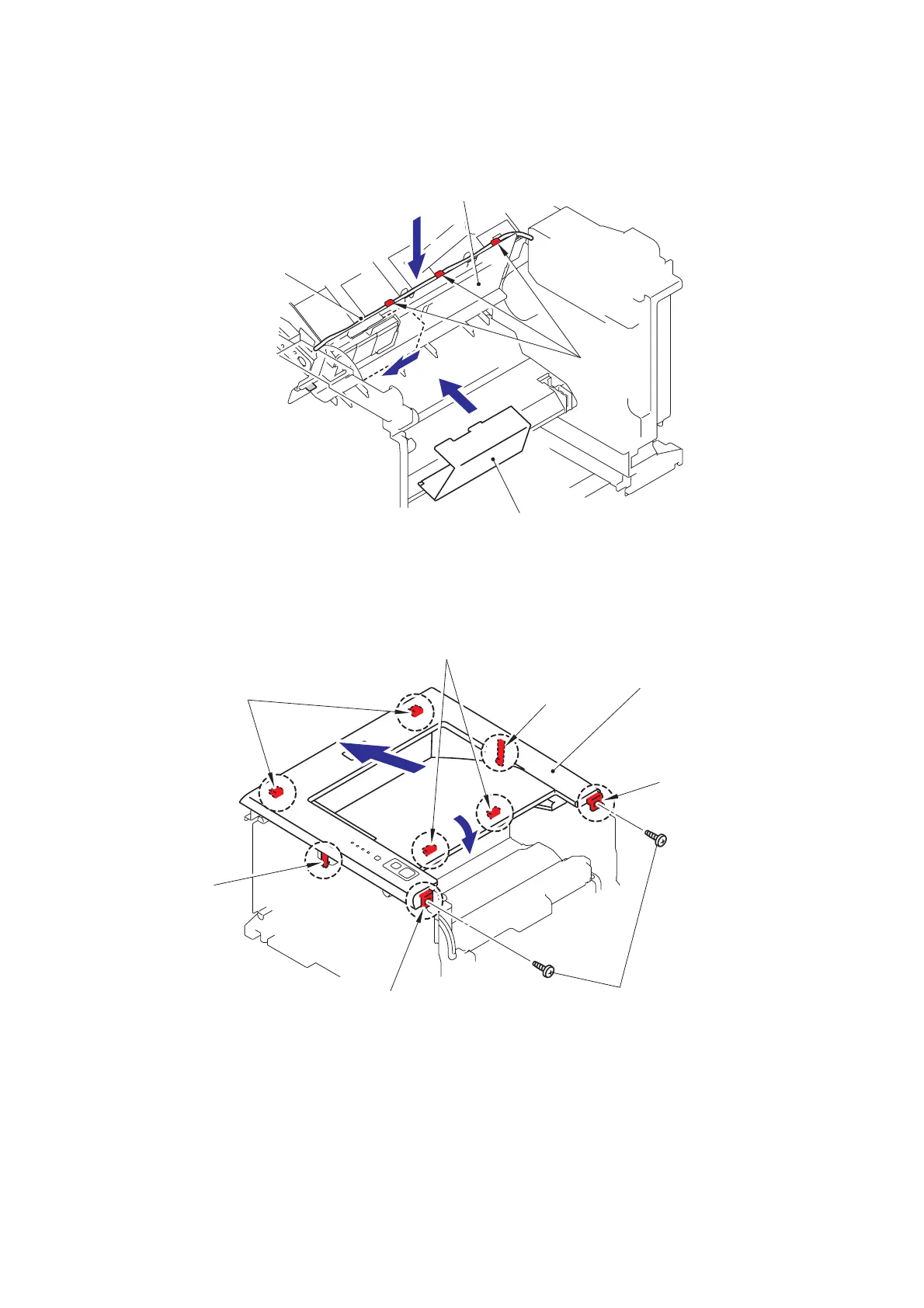

(7) Install the Sub duct into the Air duct.
(8) Connect the harness of the wireless PCB ASSY.
Fig. 4-21
(9) Secure the Top cover printed ASSY with the two bind B M4x12 Taptite screws.
Fig. 4-22
8
Hook
Air duct
Wireless PCB harness
Sub duct
<Back side>
7a
7b
Hook
Top cover printed ASSY
Taptite, bind B M4x12
Hook
Hooks
Hook
Hooks
Hook
9a
9b
