Brother HL-5340D

5-103
Confidential
9.7 Connector: 55533-1219
(1) Disconnect the Connector: 55533-1219 while pressing the Hooks inwards.
(2) Remove the LT sensor harness ASSY 1 from the Connector: 55533-1219.

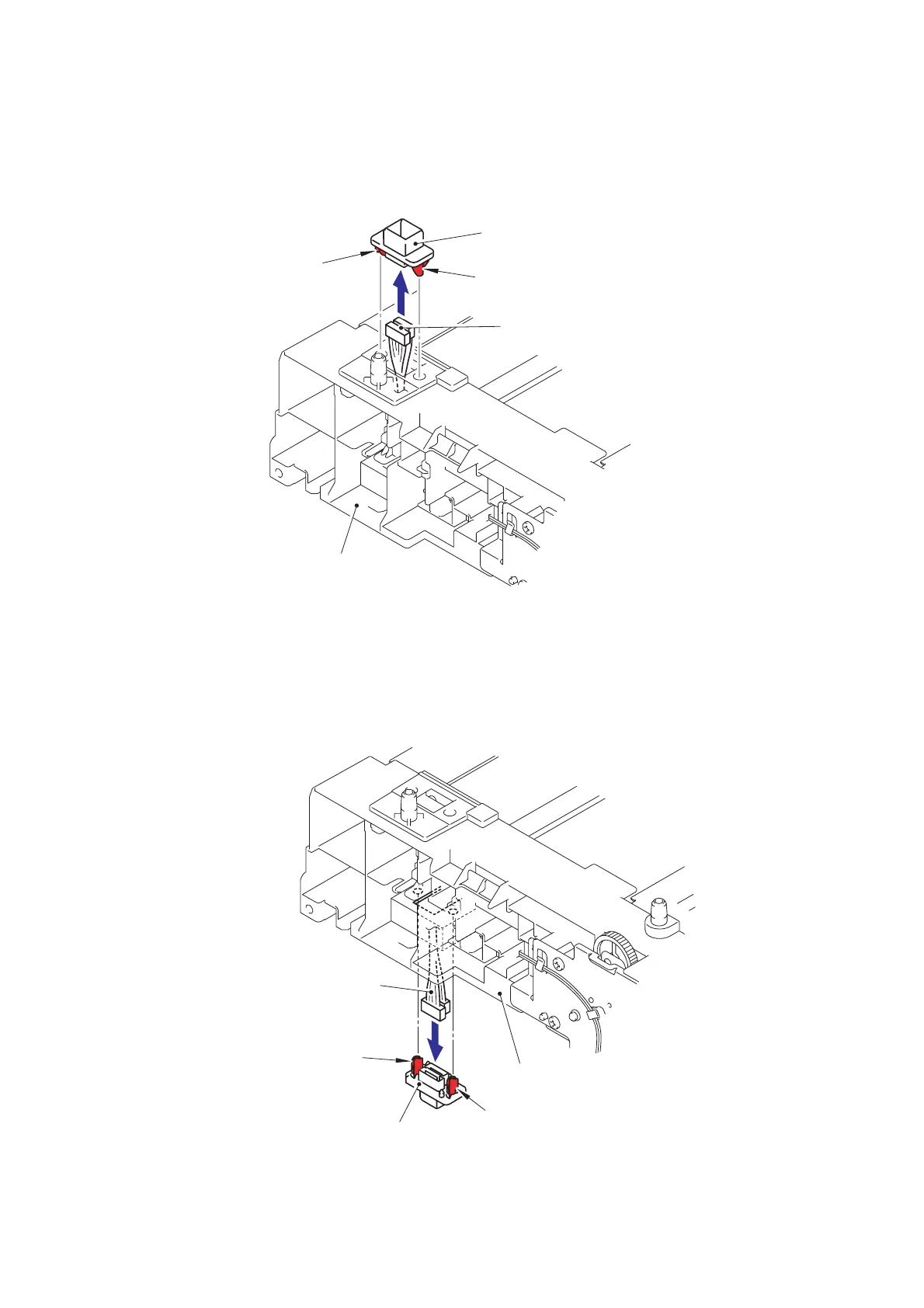

Fig. 5-147
9.8 Connector: 54702-1219
(1) Disconnect the Connector: 54702-1219 while pressing the Hooks inwards.
(2) Remove the LT sensor harness ASSY 2 from the Connector: 54702-1219.
Fig. 5-148
Hook
Hook
LT frame L
LT sensor harness ASSY 1
Connector: 55533-1219
Hook
Hook
LT frame L
LT sensor harness ASSY 2
Connector: 54702-1219
