Brother HL-5340D

5-104
Confidential

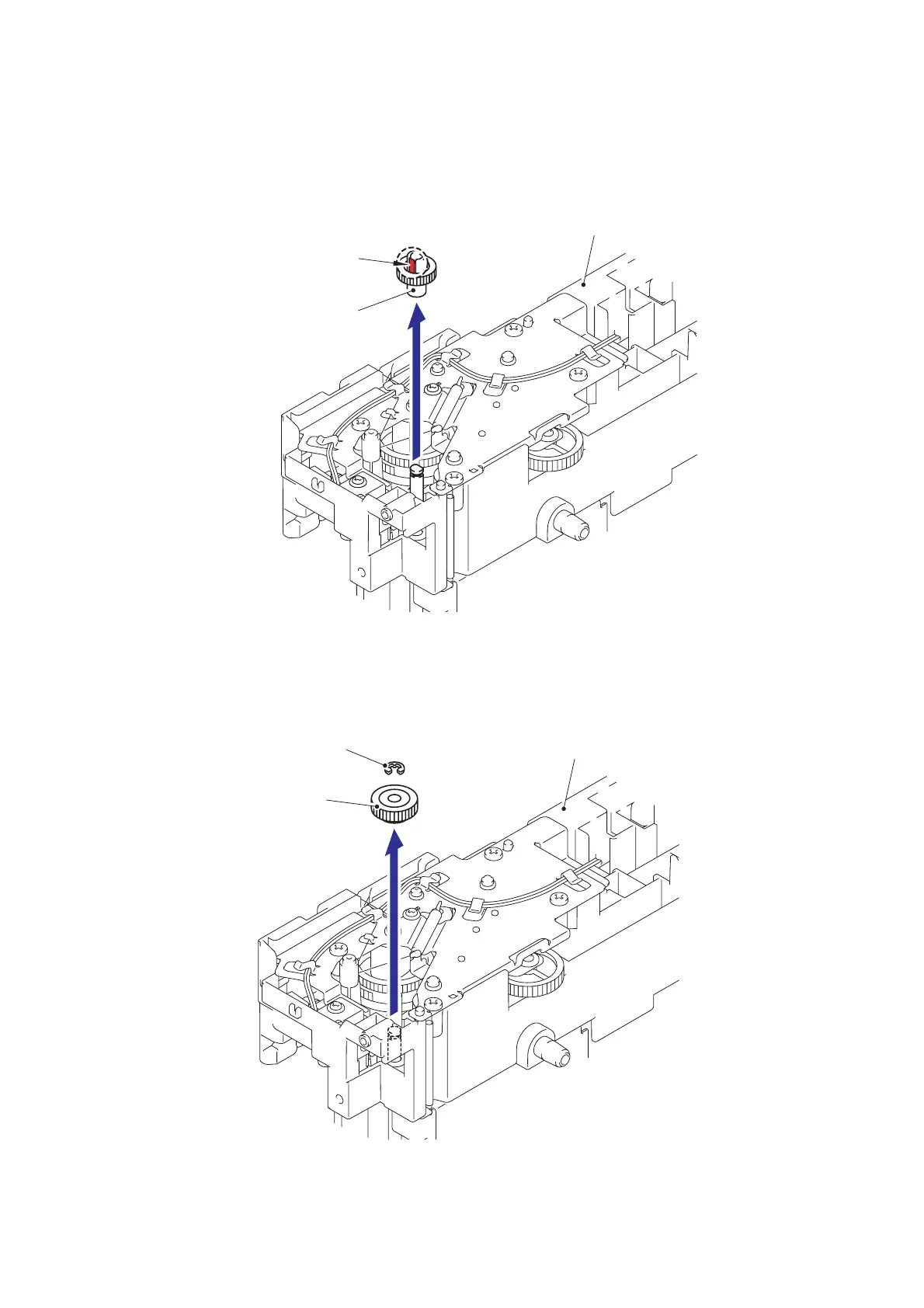

9.9 Gear 24 LT
(1) Place the LT so that the LT frame L is at the top.
(2) Release the Hook to remove the Gear 20 T1 roller drive from the LT frame L.
Fig. 5-149
(3) Remove the Retaining ring E4.
(4) Remove the Gear 24 LT from the LT frame L.
Fig. 5-150
<Left side>
Hook
Gear 20 T1 roller drive
LT frame L
Retaining ring E4
Gear 24 LT
LT frame L
