8.3 Rear Chute ASSY

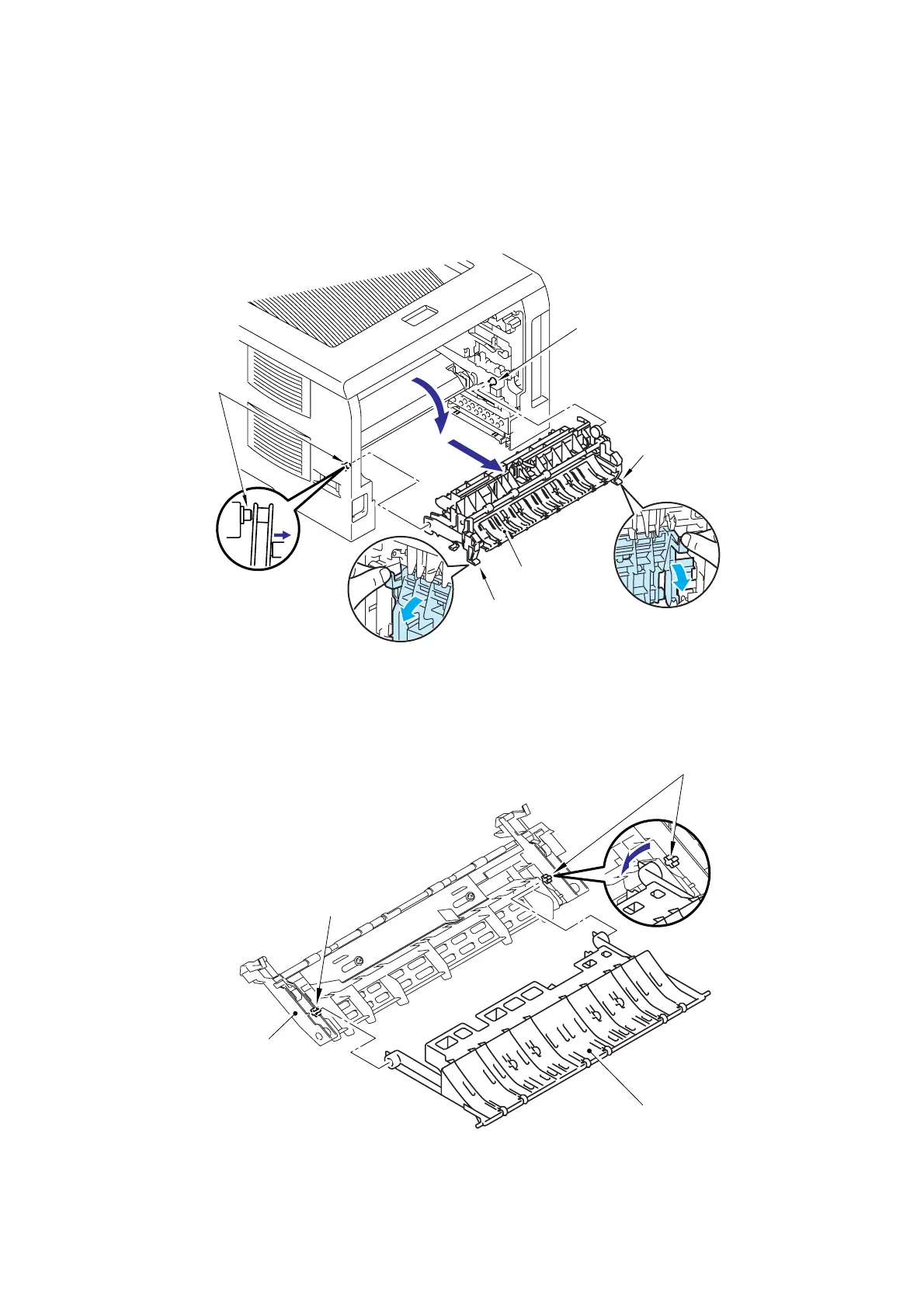

(1) Hold the Knobs on the Rear chute ASSY and pull down this to your side.
(2) Remove the Arms of the Rear chute ASSY from the Pins.
(3) Remove the Rear chute ASSY.
Fig. 5-13
(4) Remove the Arm of the Outer chute from the Pin of the Rear chute, and remove the
Outer chute.
Fig. 5-14
Pin
Pin
Knob
Knob
Rear chute ASSY
1
1
1
2
3
Pin
Pin
Outer chute
Rear chute
