5-38
Confidential
8.10 Top Cover Printed ASSY (LED model)
(1) Remove the two bind B M4x12 Taptite screws from the Top cover printed ASSY.
(2) Release all Hooks of the Top cover printed ASSY and lift up the front side of the Top
cover printed ASSY.
(3) Remove the Top cover printed ASSY.
(4) Remove the Support flap 2.

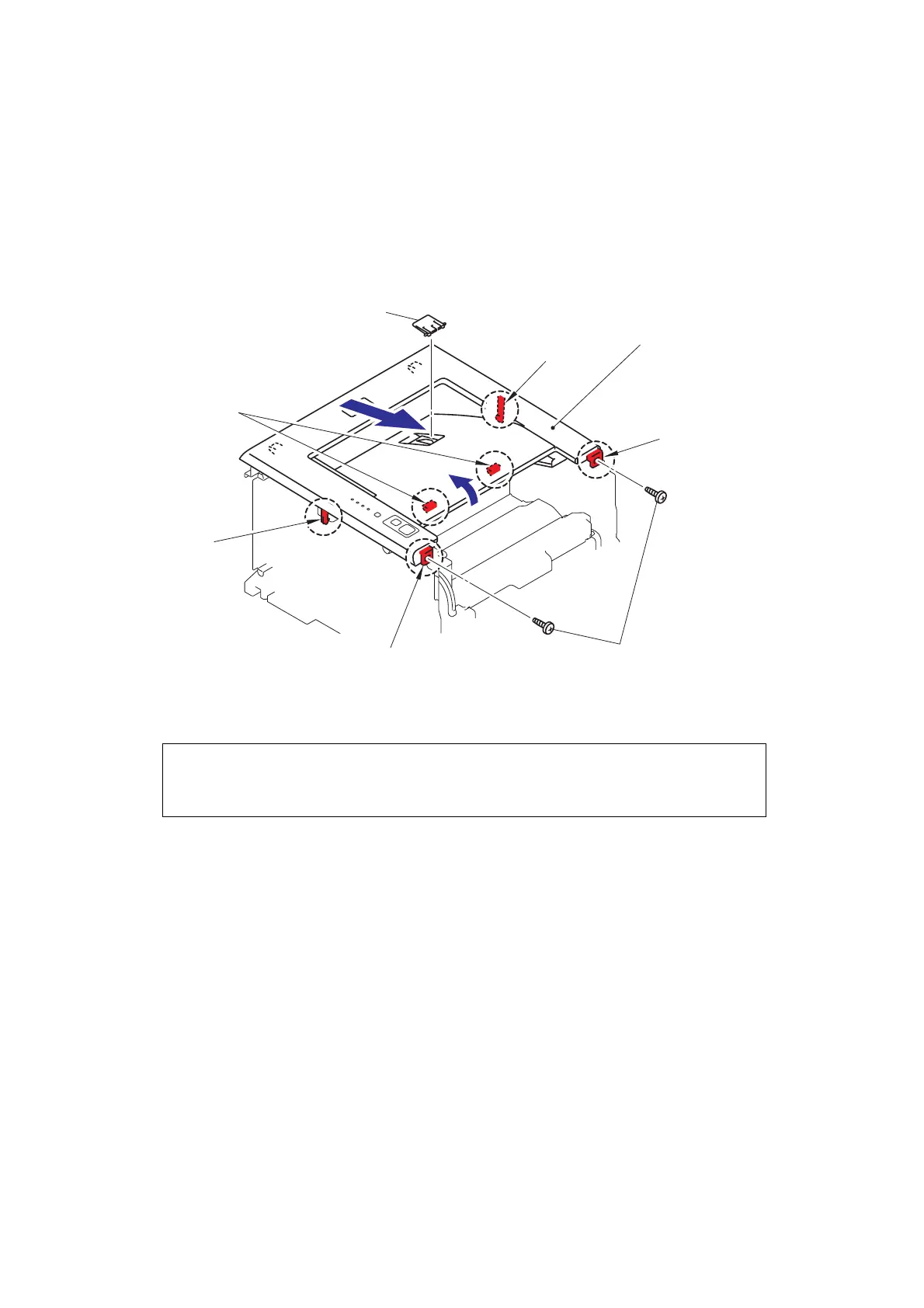

Fig. 5-38
Note:
There are procedures for disassembling Frame L after this procedure.
(8.33 FRAME L ASSY)
Hook
<Front side>
Top cover printed ASSY
Taptite, bind B M4x12
Hook
Hook
Hook
Hook
Support flap 2
3
2
To Next Page
