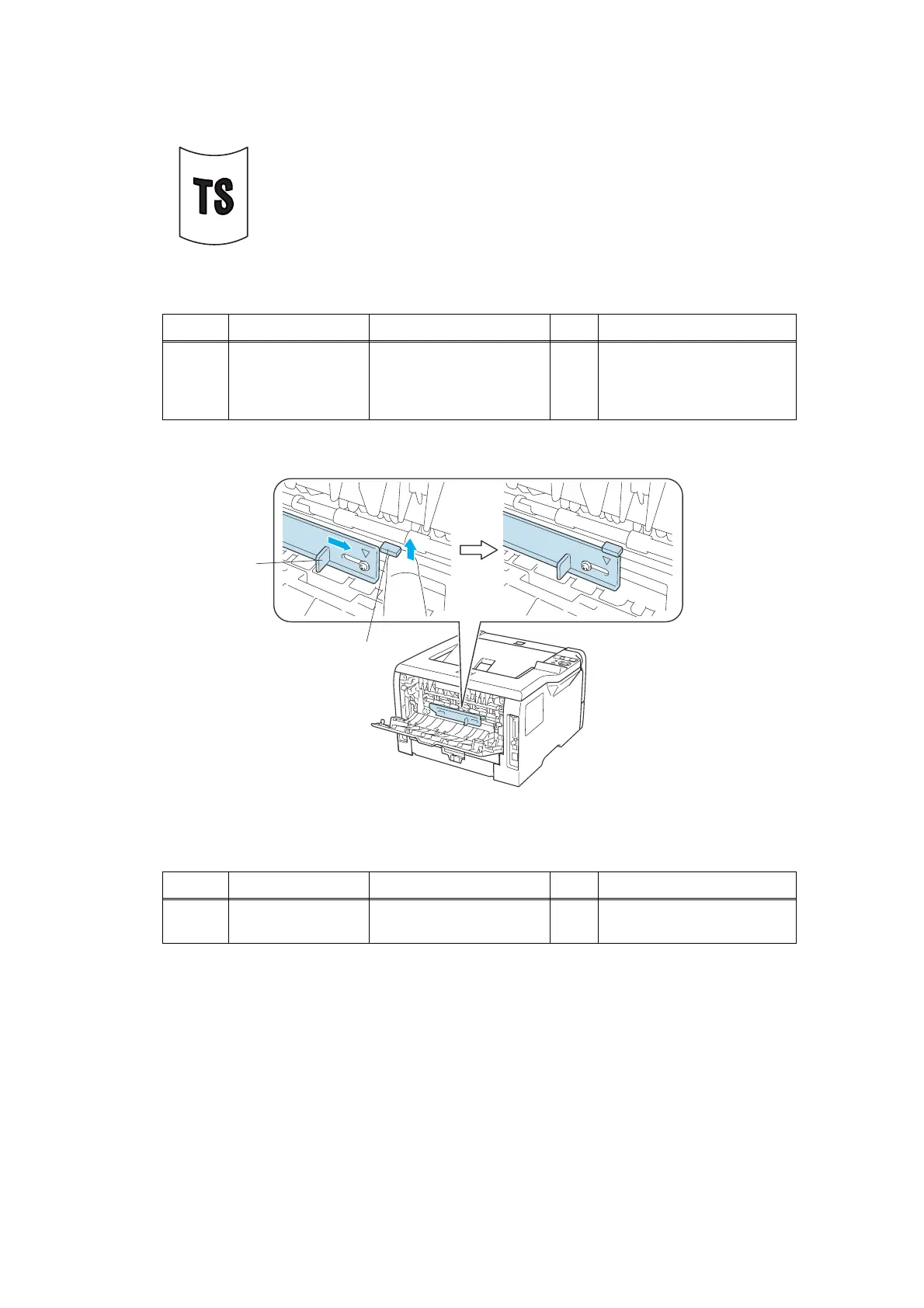

3.7 Curl in the paper
Slide the lever 2 to the right while pushing up the lever 1 to the direction of the arrow.
Fig. 3-4
3.8 Prints only single side of the paper when duplex-printing
The curl in the left figure.
<User Check>
- Change the paper.
Step Cause Check
Result Remedy
1
Mismatch the
setting the paper
and the eject roller
1
Is the problem solved by
changing the position of
the anti-curl lever ?
Yes
Change the position of the
anti-curl lever.
Step Cause Check
Result Remedy
1
Used small paper Is the A4/LETTER used?
No
Use the paper of the A4/
LETTER.
2
1

Brother HL-5340D Specifications

General

Color	No
N-up printing	4, 9, 16, 25
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Maximum internal memory	528 MB
Sound power level (standby)	35 dB
Sound pressure level (printing)	54 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	75 W
Power consumption (printing)	675 W
Power consumption (PowerSave)	6 W
Custom media width	76.2 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	116 - 406.4 mm
Paper tray media types	Bond paper, Plain paper, Recycled paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Multi-purpose tray media types	Bond paper, Heavyweight paper, Labels, Plain paper, Transparencies
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Package weight	11.700 g
Maximum duty cycle	- pages per month
Number of print cartridges	1
Standard interfaces	Parallel, USB 2.0
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Dimensions (WxDxH)	371 x 384 x 246 mm
