8.1 Paper Tray
(1) Pull up the back side of the Separation pad ASSY.
(2) Push the Hooks provided on both sides of the Separation pad ASSY inwards.
(3) Pull up the Separation pad ASSY.

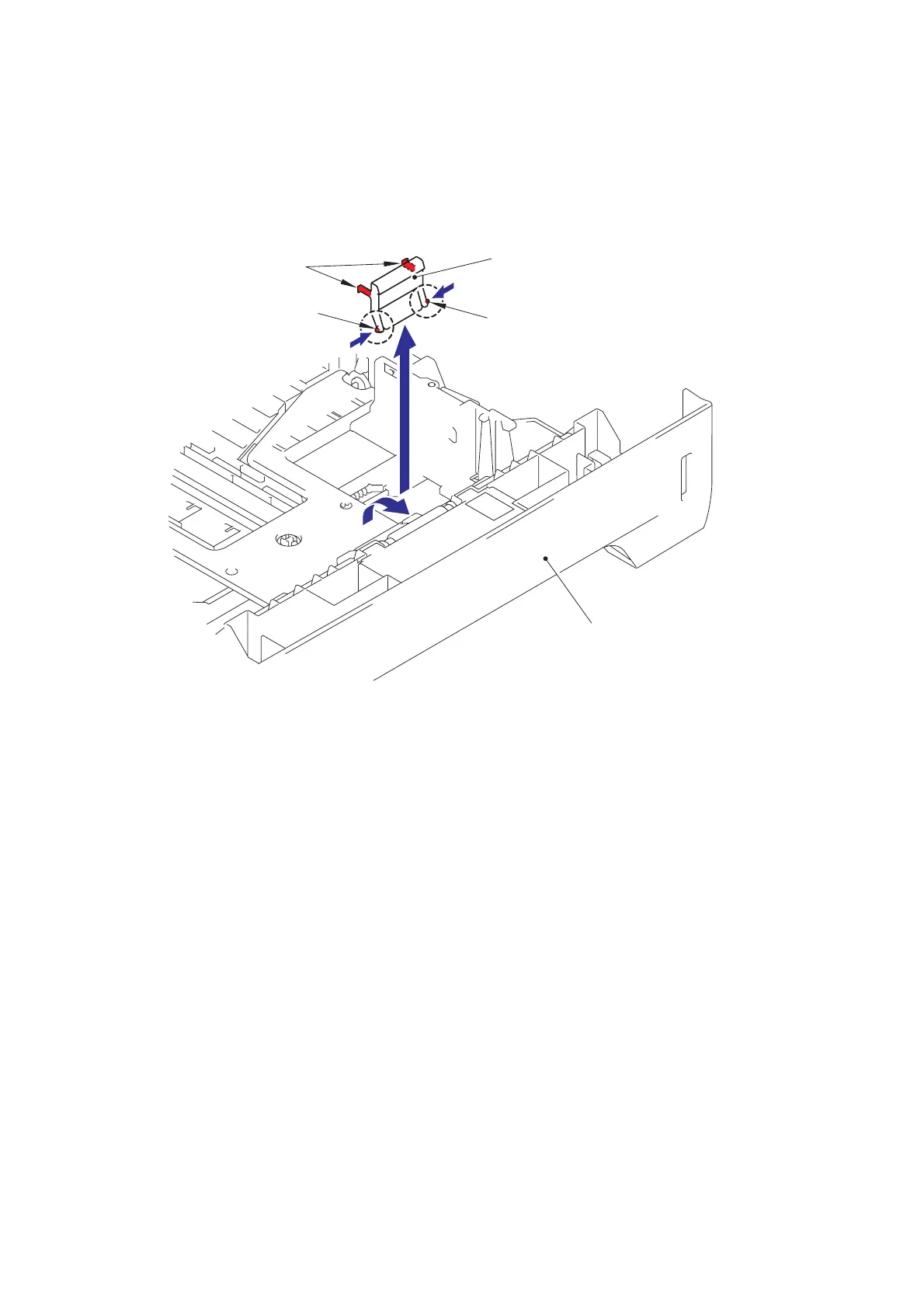

Fig. 5-6
Separation pad ASSY
Hook
Hooks
Hook
1
3
2
2
Paper tray
<Front side>
