1. OVERALL
1.1 General Block Diagram

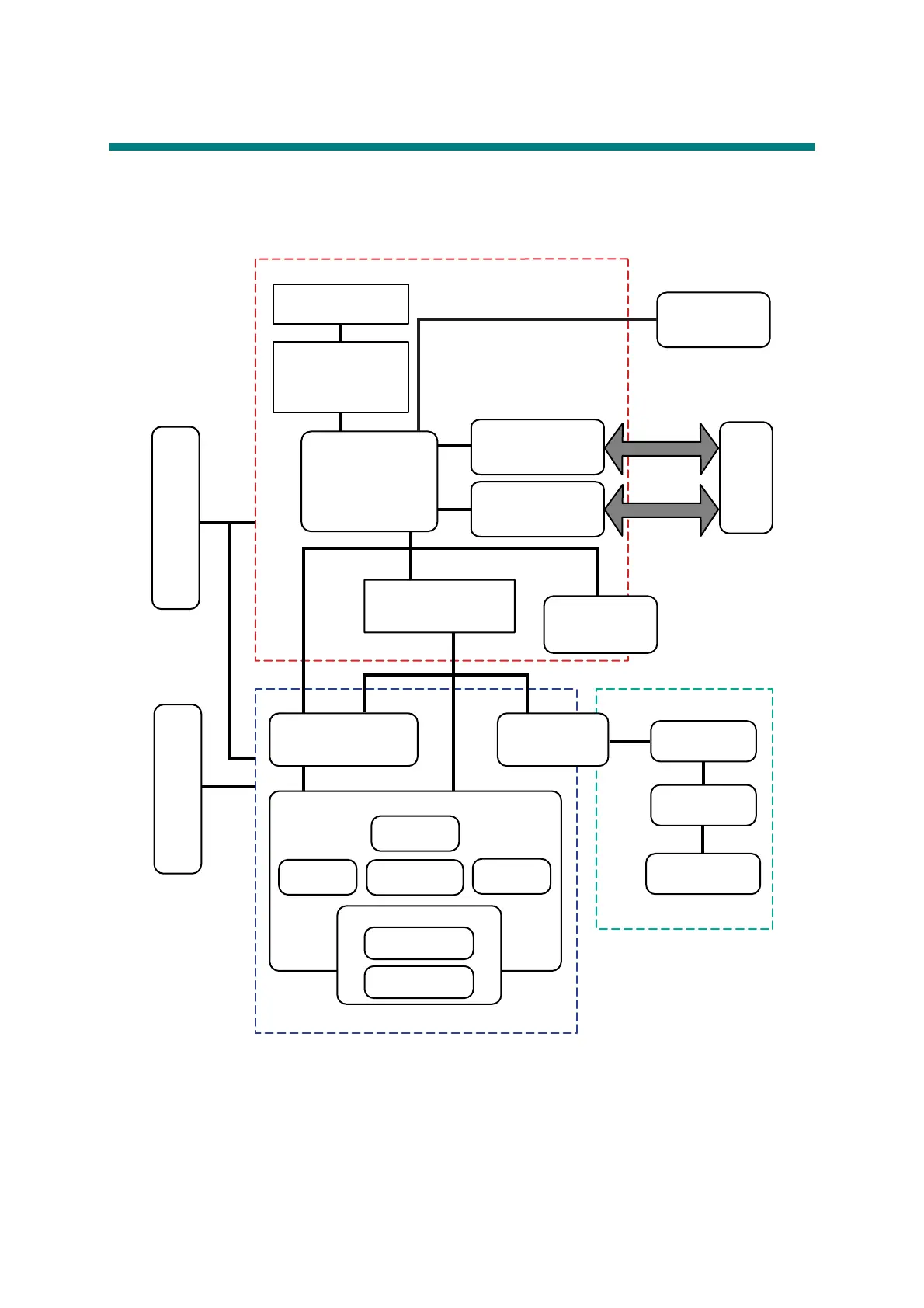

Fig. 2-1 shows a general block diagram.
Fig. 2-1
Video control block
Engine control block
Operation block
(Control panel)
Control system
Low-voltage power
supply block
High-voltage power
supply block
Laser unit
Drive block
(DC motor)
Drum unit
Transfer block
Exposure
drum
Charging
block
External device
Paper tray
Fuser unit
Paper eject tray
Paper feed system
Image generation system
Ethernet
10/100 Base TX
(Ethernet model)
Wireless LAN
Extended RAM
Paper dust
cleaner block
Toner cartridge
Developing block
Developer unit
SODIMM 144pin
RAM
16MB:
Netwark model
32MB:
No Netwark model
Interface block
USB
Parallel
(Wireless LAN
model)
