(2) Remove the MP solenoid ASSY, Solenoid release spring P/R and MP solenoid lever.

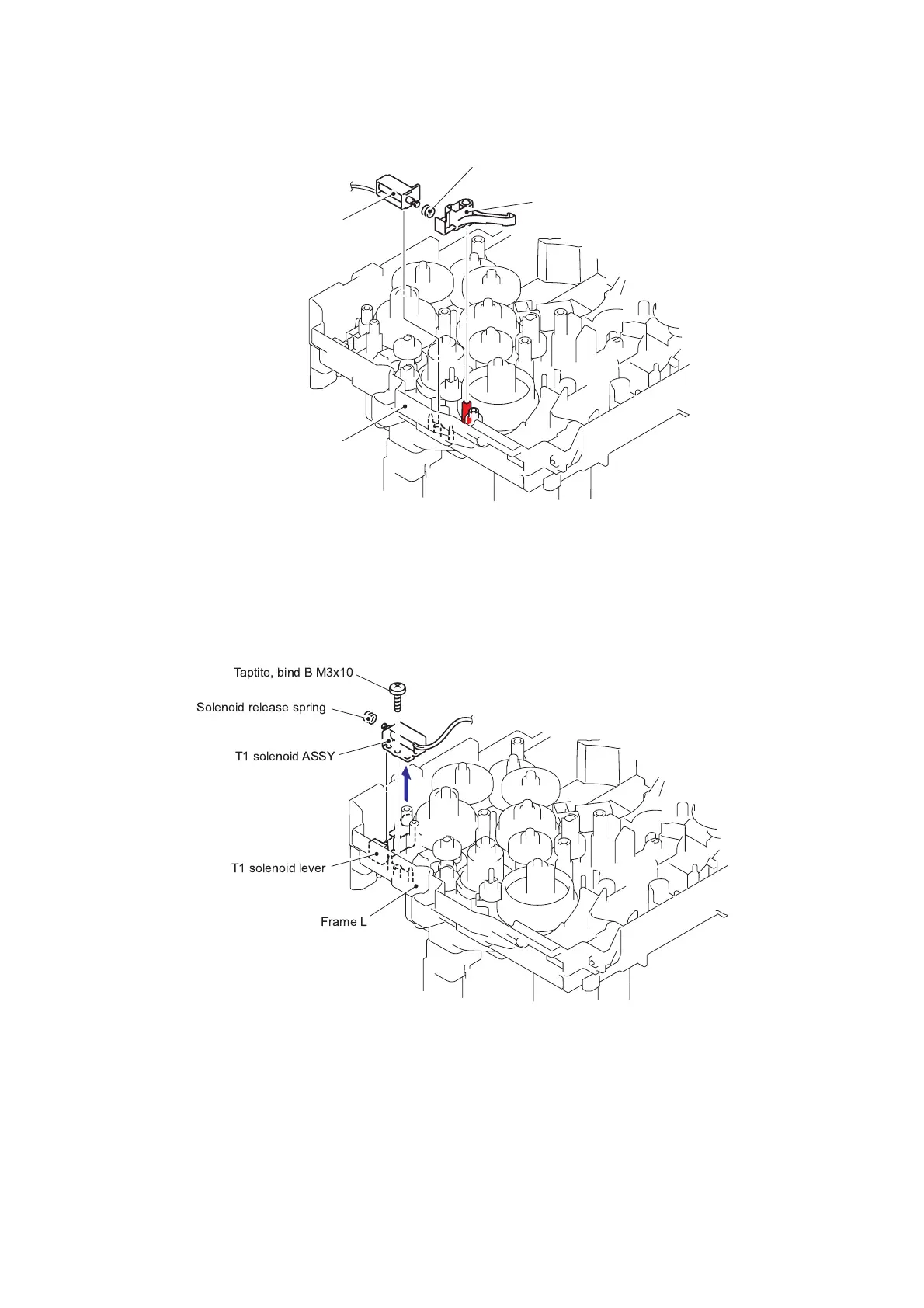

Fig. 5-75
8.18 T1 Solenoid ASSY
(1) Remove the bind B M3x10 Taptite screw.
(2) Remove the T1 solenoid ASSY and the Solenoid release spring.
Fig. 5-76
MP solenoid ASSY
Solenoid release spring P/R
MP solenoid lever
Frame L
   
  
  
  
 
