Brother HL-5340D

5-79
Confidential

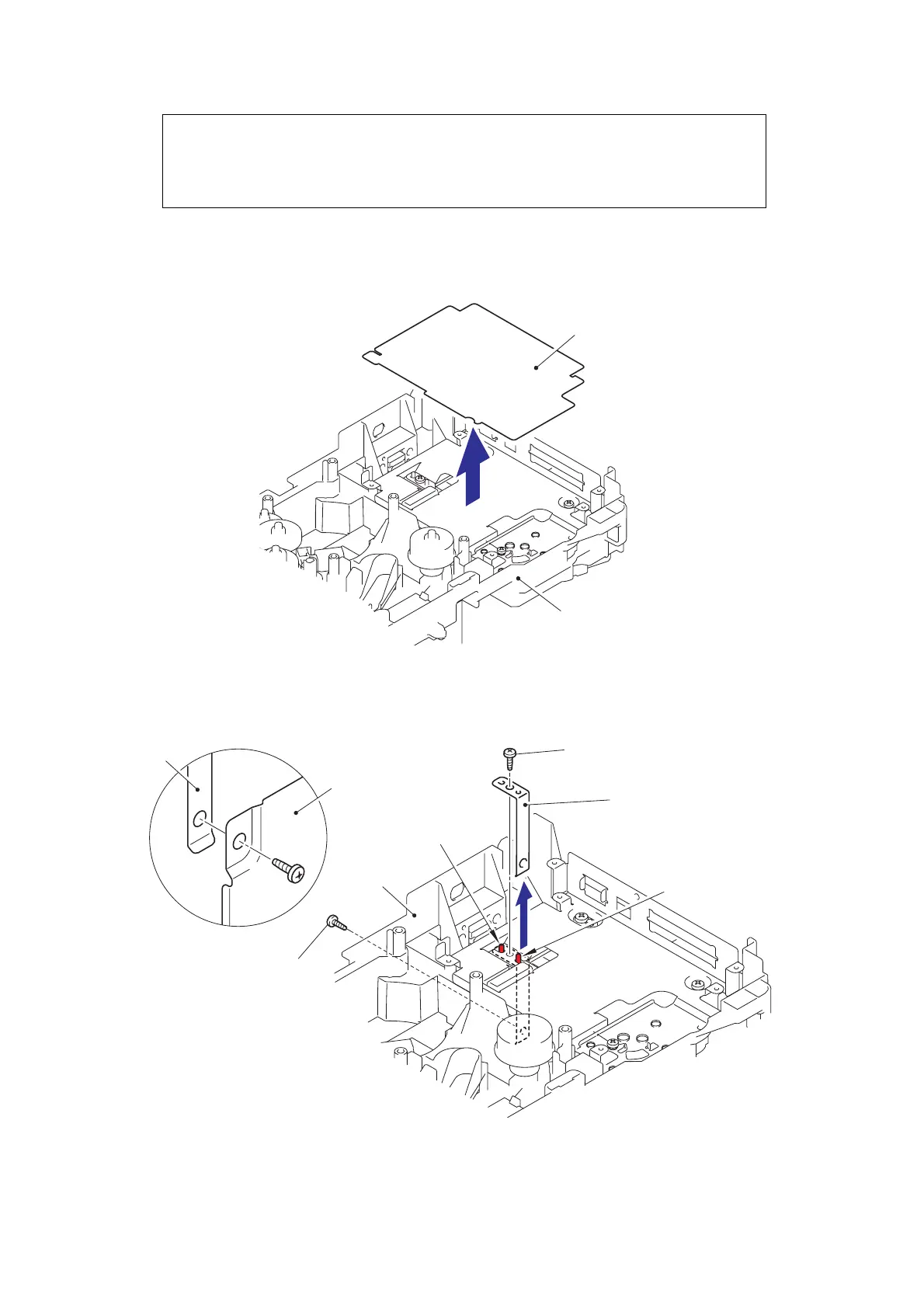

8.33 FRAME L ASSY
(1) Remove the Insulation sheet.
Fig. 5-108
(2) Remove the two bind B M4x12 Taptite screws, and then remove the Plate.
Fig. 5-109
Note:
The procedure for disassembling the Frame L after
"8.10 Top Cover Printed ASSY (LED model)" or "8.11 Top Cover Printed ASSY/Panel
Plate Printed ASSY (LCD model)" is described below.
Insulation sheet
Frame L
Taptite bind B M4x12
Taptite bind B M4x12
Frame L
Plate
Pin
Pin
Plate
Base plate LV
