Brother HL-5340D

5-80
Confidential

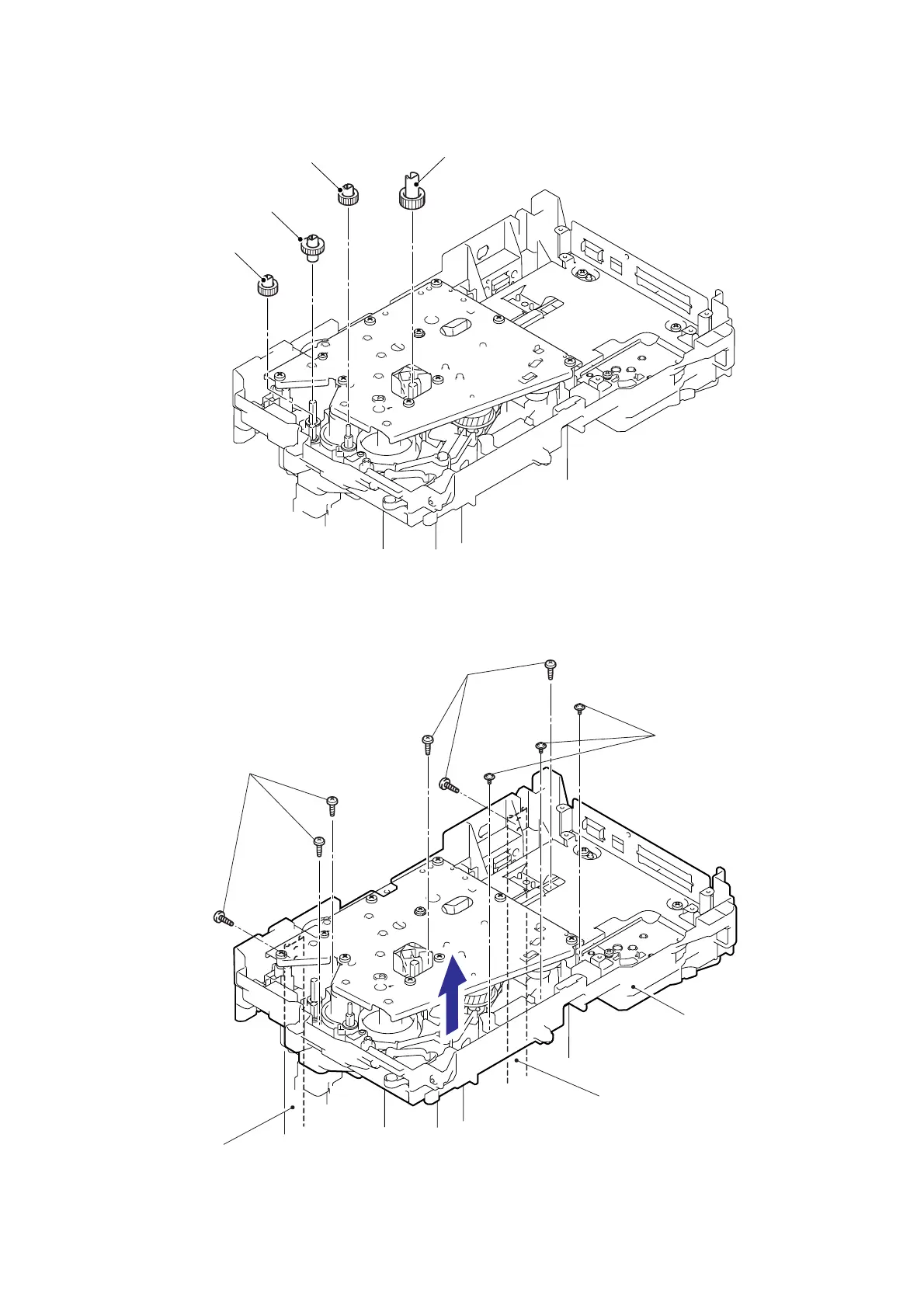

(3) Remove the Gear 23, Gear 17 (white), Gear 17 (black) and Gear 20.
Fig. 5-110
(4) Remove the six bind B M4x12 Taptite screws and the three cup S M3x6 Taptite screws.
(5) Remove the Frame L.
Fig. 5-111
Gear 17 (black)
Gear 20
Gear 17 (White)
Gear 23
Taptite, bind B M4x12
Taptite, bind B M4x12
Taptite cup S M3x6 SR
Under bar
Under bar
Frame L ASSY
