Brother HL-5340D

5-77
Confidential

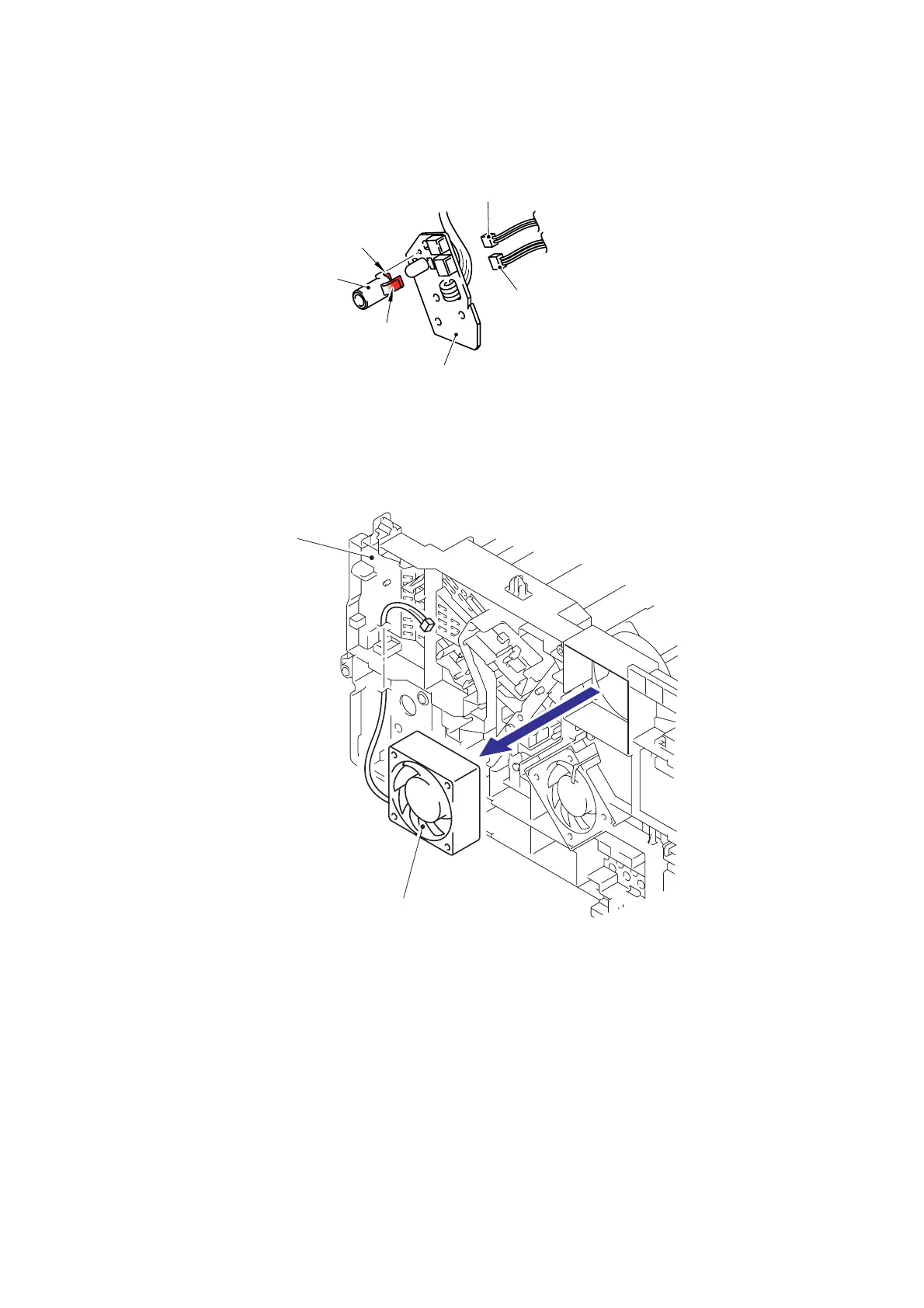

(3) Disconnect the two connectors from the Toner LED PCB.
(4) Release the two Hooks to remove the LED holder from the Toner LED PCB.
Fig. 5-105
8.31 Fan Motor 60 Unit
(1) Remove the Fan motor 60 unit from the Frame R.
Fig. 5-106
Hook
Hook
Toner LED PCB unit ASSY
LED holder
Fan motor 60 unit LV connector
Fan motor 60 unit connector
<Right side>
Fan motor 60 unit
Frame R
