8.4 Fuser Unit

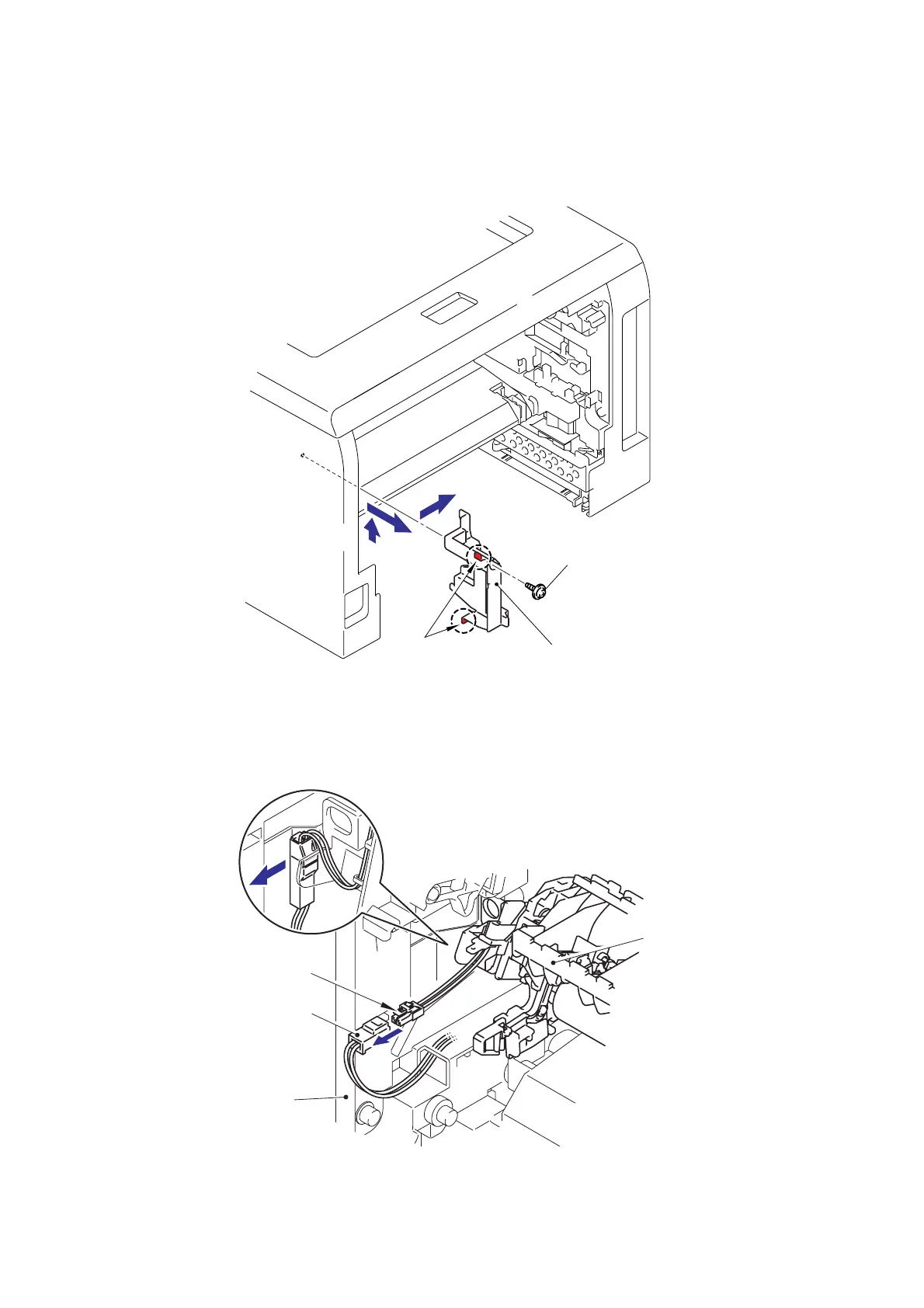

(1) Remove the pan B M4x20 Taptite screw. Release the Hooks in the order of 1a, 1b and
1c. Remove the FU harness cover 1.
Fig. 5-17
(2) Disconnect the connector of the Heater terminal while pressing the Hook of the
connector of the Fuser unit.
Fig. 5-18
1b
1a
1c
Hooks
FU harness cover 1
Taptite, pan B M4x20
Hook
Flame R
Fuser unit
Heater terminal
