8.19 Toner Sensor PCB

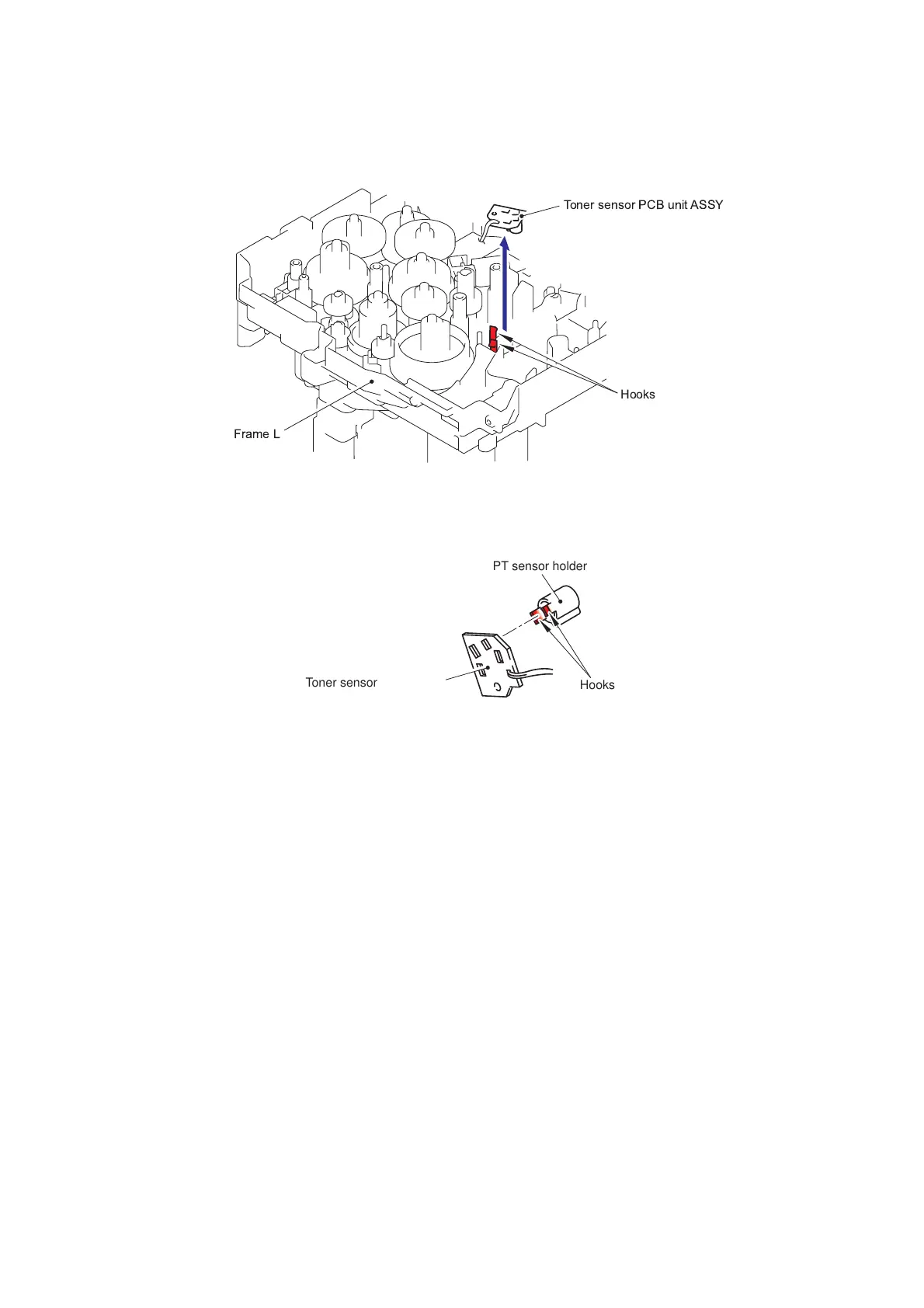

(1) Remove the Toner sensor PCB unit ASSY from the Frame L.
Fig. 5-77
(2) Remove the PT sensor holder from the Toner sensor PCB ASSY.
Fig. 5-78
 
    

PT sensor holder
Hooks
Toner sensor PCB ASSY
