Brother HL-5340D

5-73
Confidential
8.28 High-Voltage PS PCB ASSY

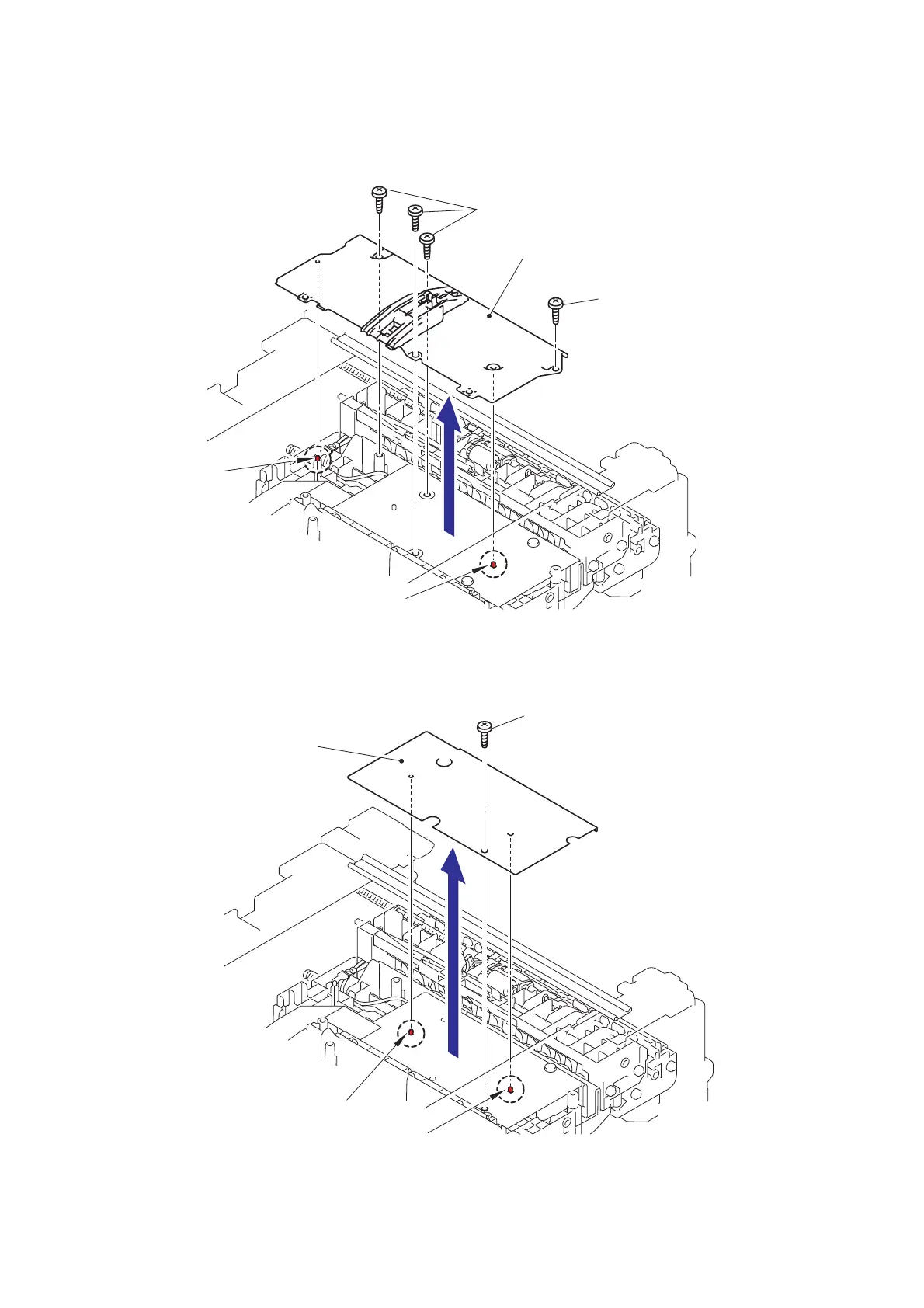

(1) Remove the four bind B M4x12 Taptite screws, and then remove the Base plate HV.
Fig. 5-98
(2) Remove the bind B M4x12 Taptite screw, and then remove the HV insulation sheet.
Fig. 5-99
Taptite, bind B M4x12
Taptite, bind B M4x12
<Front side>
Base plate HV
Pin
Pin
Taptite, bind B M4x12
HV insulation sheet
Pin
Pin
