8.17 MP Solenoid ASSY

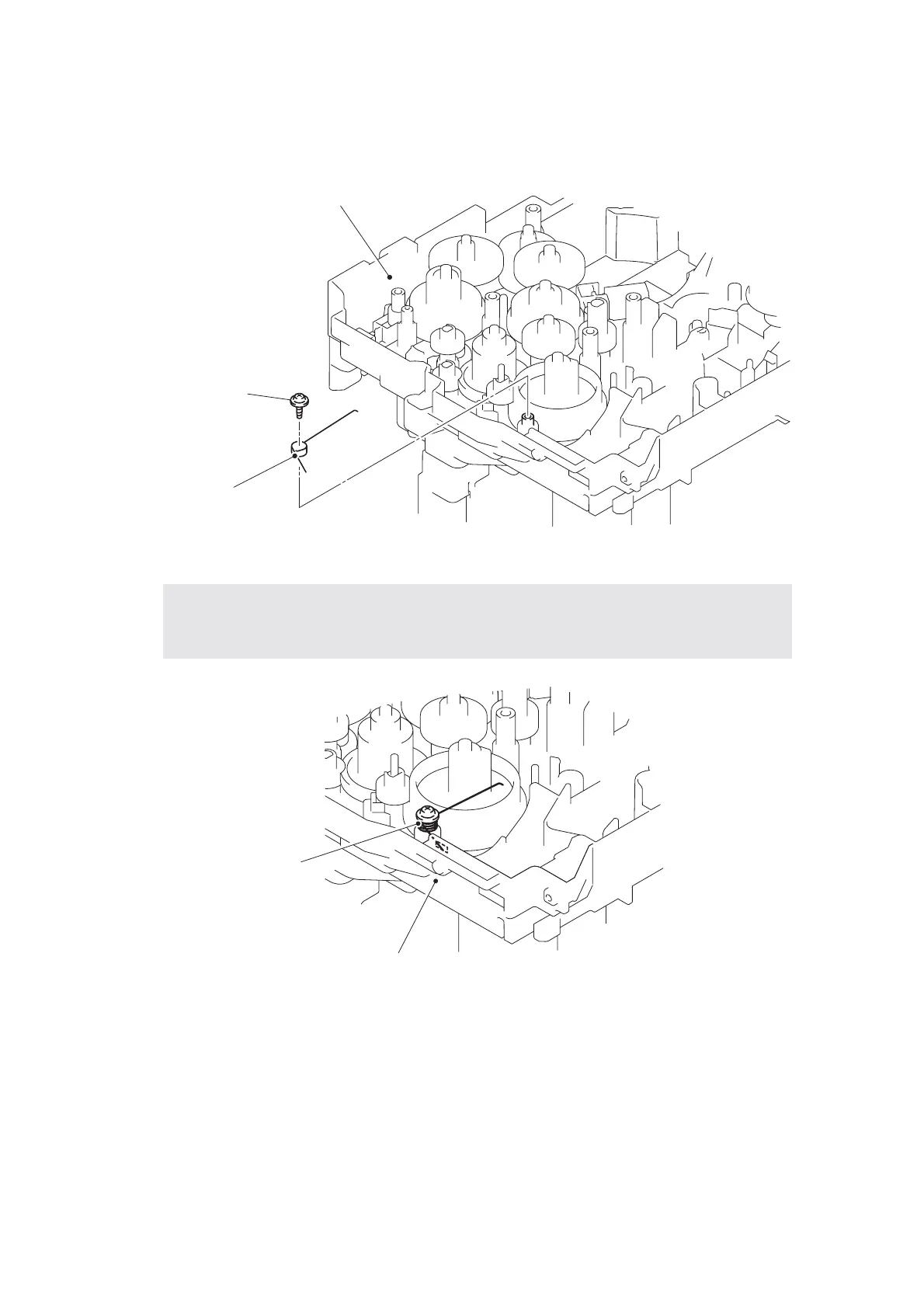

(1) Remove the cup B M3x8 Taptite screw, and then remove the Spring.
Fig. 5-73
Fig. 5-74
Assembling Note:
• When assembling the Spring, ensure that its direction is correct referring to the figure
below.
Frame L
Taptite, cup B M3x8
Spring
Frame L
Spring
