8.12 Gear Plate Calking ASSY/Develop Joint/Main Motor ASSY
(1) Place the printer body so that the Frame L is at the top.
(2) Remove the eight bind B M4x12 Taptite screws and one cup S M3x6 taptite screw.
(3) Remove the Gear plate calking ASSY from the Frame L.

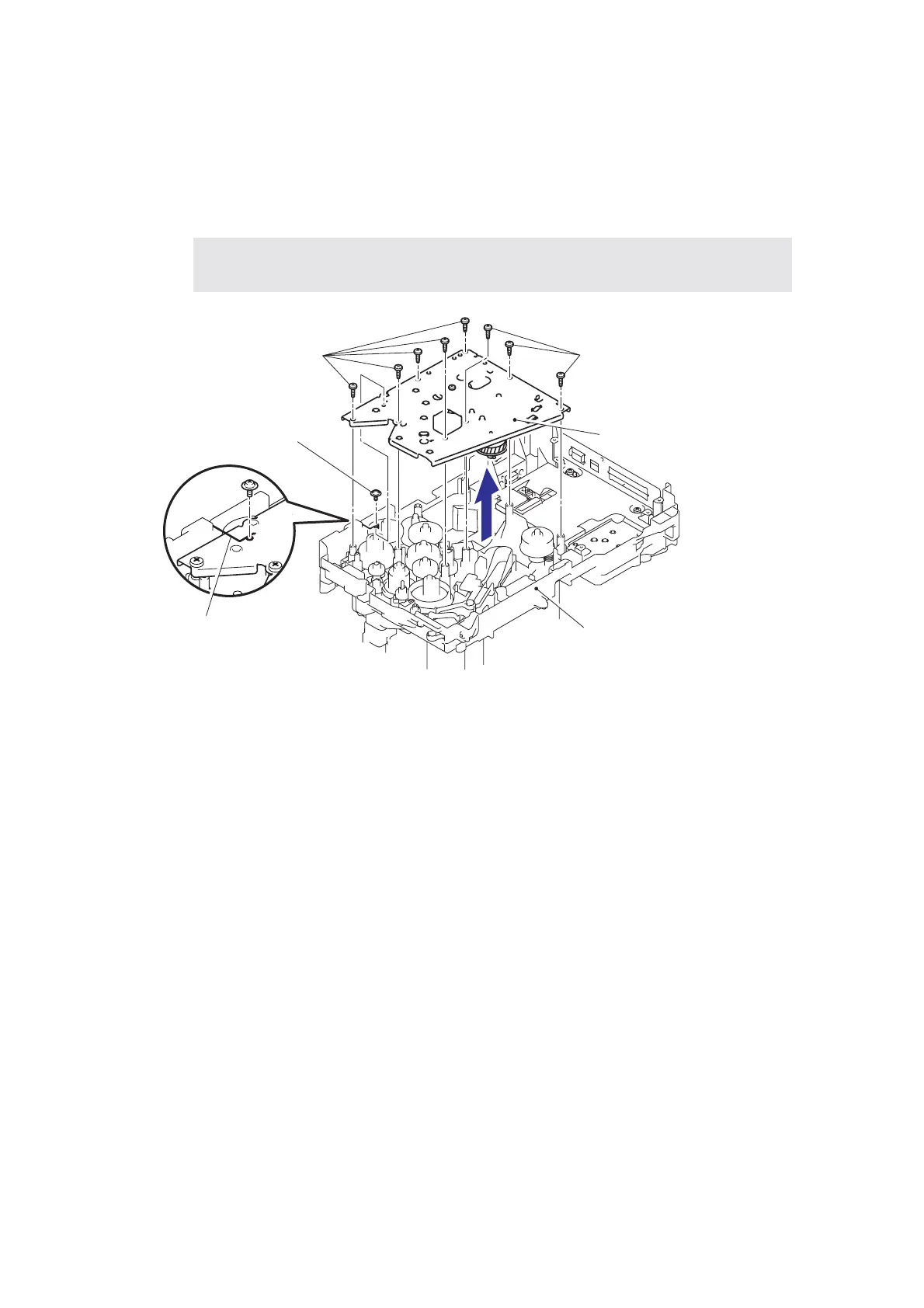

Fig. 5-60
Note:
• Be careful not to drop the gear.
Taptite, bind B M4x12
Taptite, bind B M4x12
Taptite, cup S M3x6
Under FG wire
Gear plate calking ASSY
Frame L
