4-17
Confidential

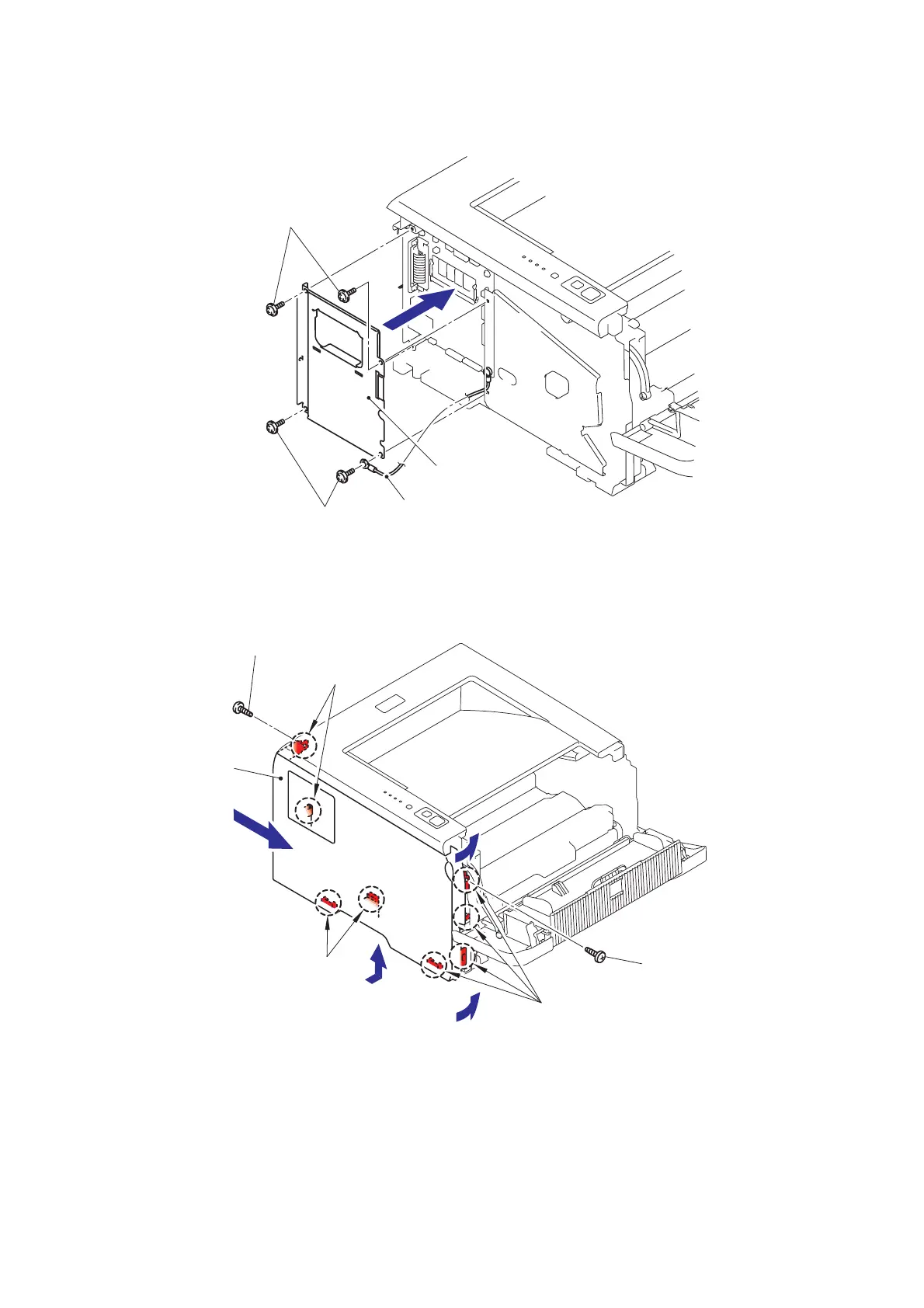

(12) Secure the Shield cover and FG harness with the four cup S M3x6 SR Taptite screws.
Fig. 4-25
(13) Catch the all Hooks and secure the Side cover L with the two bind B M4x12 Taptite
screws.
Fig. 4-26
Taptite, cup S M3x6 SR
Taptite, cup S M3x6 SR
FG harness
Shield cover
Taptite, bind B M4x12
Hooks
Hooks
Hooks
Side cover L
Taptite, bind B M4x12
