Brother HL-5340D - Page 156

5-9
Confidential

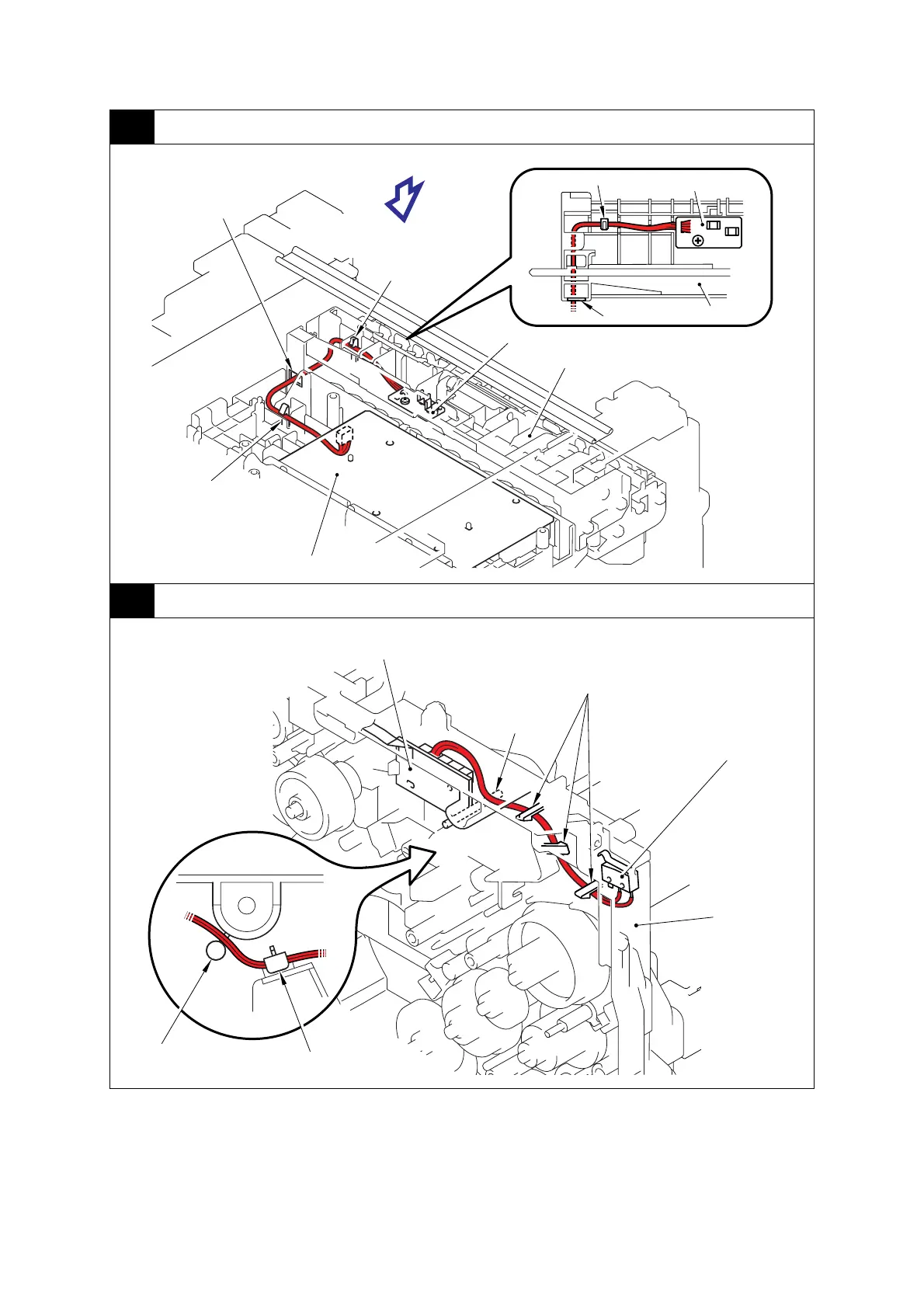

2 PE EG sensor ASSY
3 Interlock SW ASSY
High-voltage PS PCB ASSY
PE EG sensor ASSY
PE EG sensor ASSY
Paper Feed frame
Paper feed frame
Hook "A"
Hook "B"
Hook "B"
Hole "A"
Hole "A"
Printer top side
(Printer body upside down)
Interlock SW ASSY
Relay front PCB ASSY
Hooks
Frame L
Pin
Hook
Pin
