Brother HL-5340D

5-29
Confidential
(5) Remove the pan B M4x20 Taptite screw, and then remove Fuser unit.

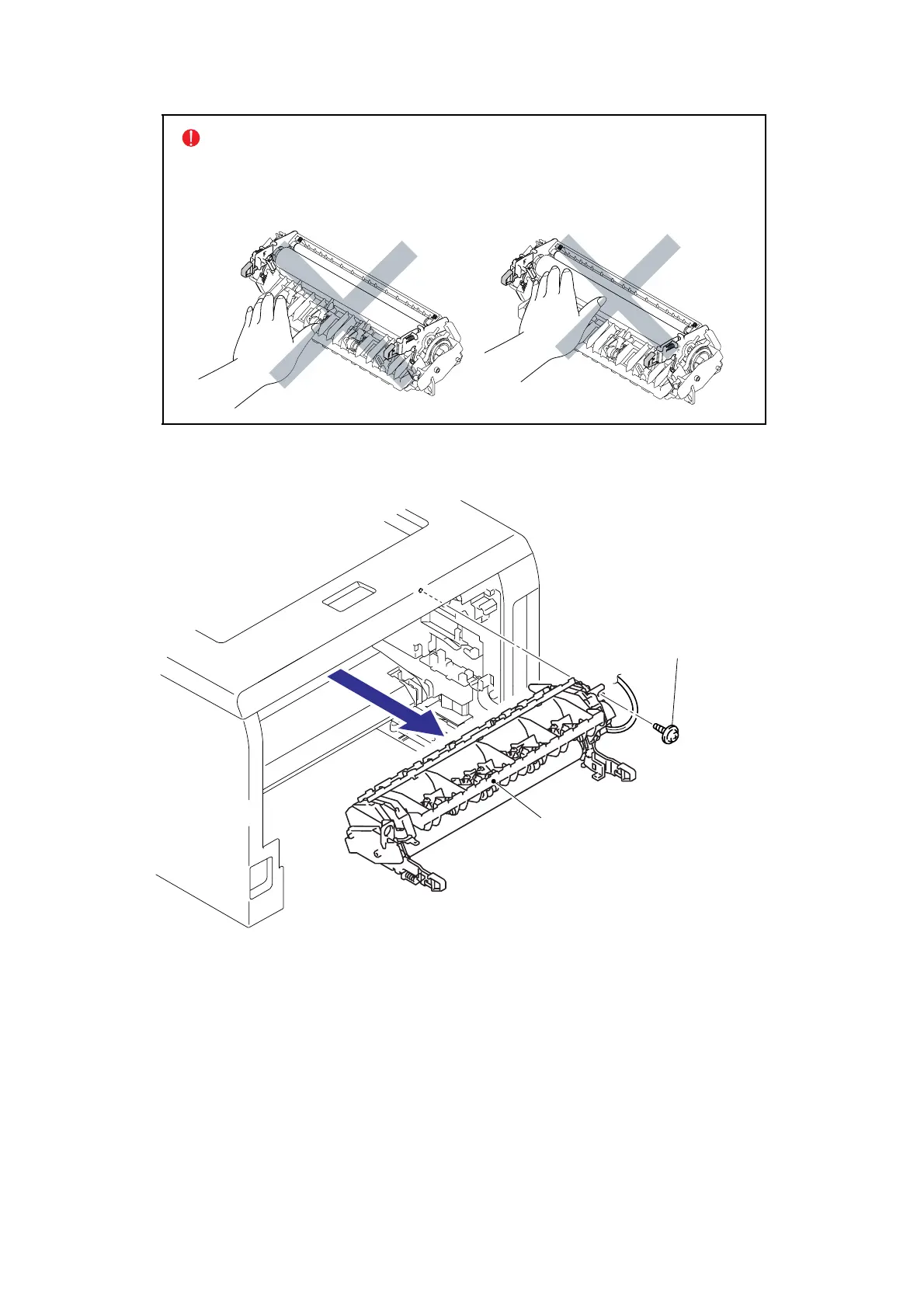

Fig. 5-21
CAUTION
• DO NOT subject the fuser unit to strong physical shocks or vibrations.
• DO NOT touch the rollers and the electrodes to prevent damage to the fuser unit In
the following figures.
Taptite, pan B M4x20
Fuser unit
