Brother HL-5340D

5-57
Confidential

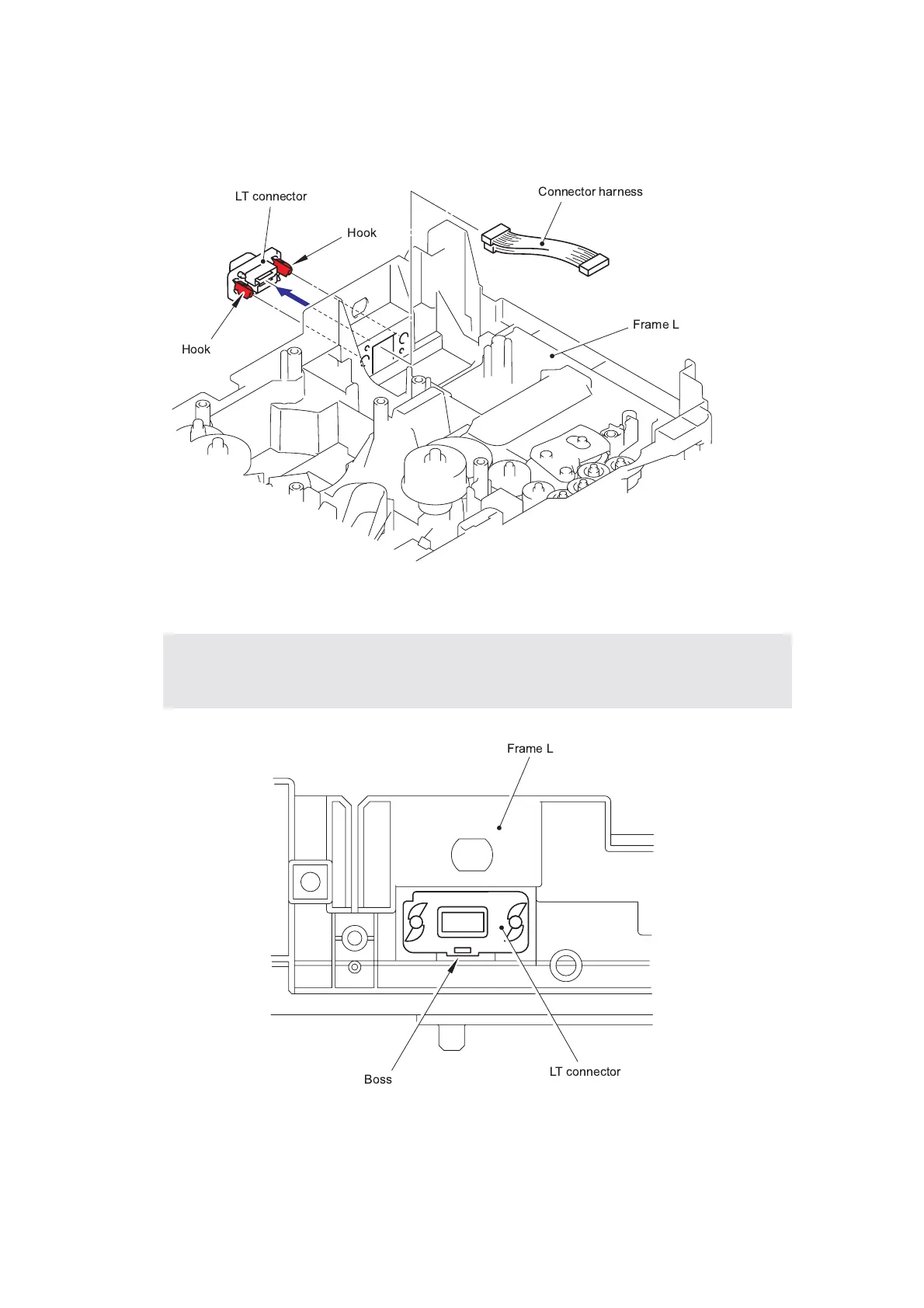

(2) Remove the Connector harness.
(3) Disconnect the LT connector while pressing the Hook inwards.
Fig. 5-68
Fig. 5-69
Assembling Note:
• When assembling the LT connector, ensure that its direction is correct referring to the
figure below.
 
 

 

 
 

