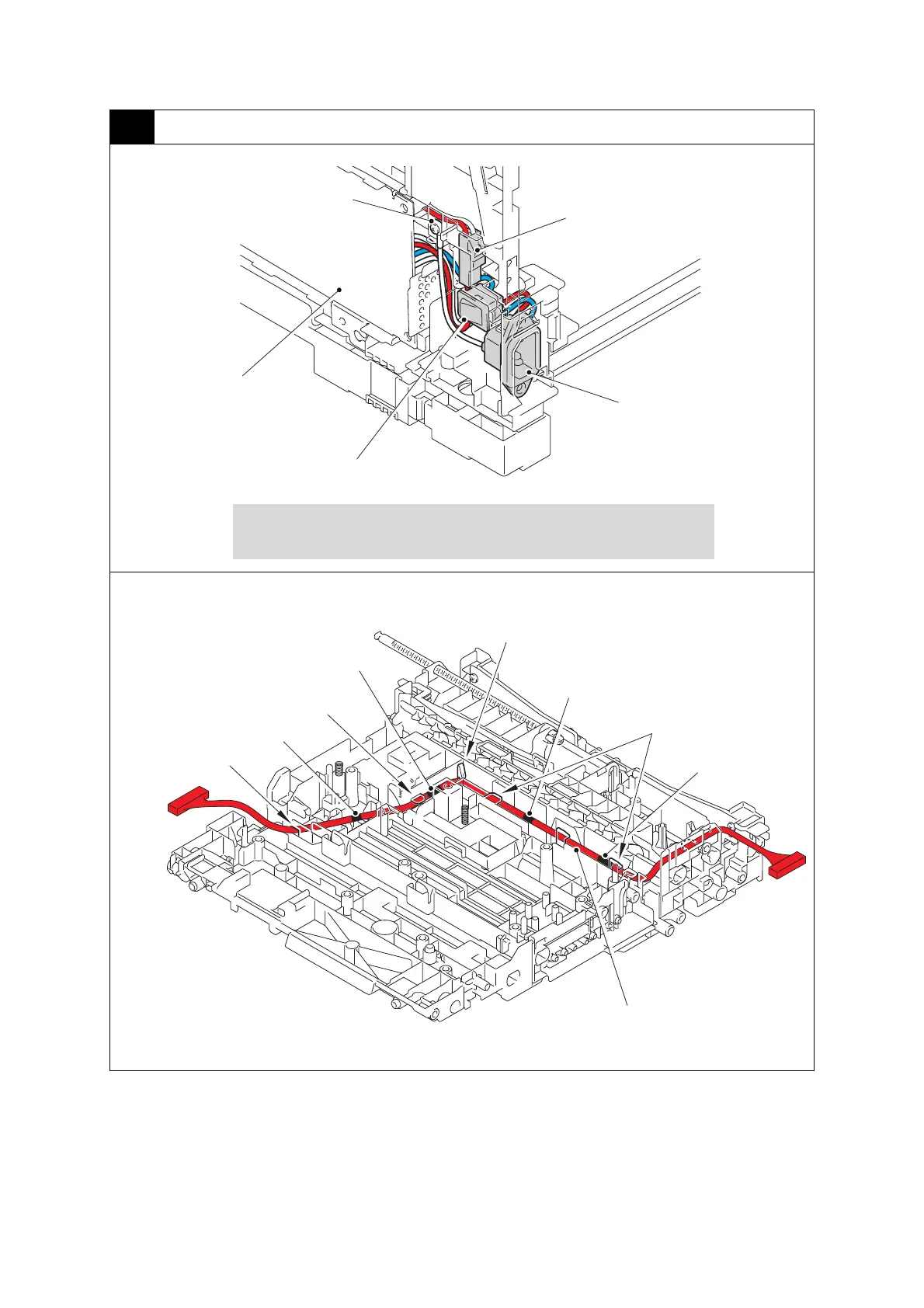

7 Low-voltage power supply PCB ASSY
Harness colors may be changed for any reason.
Low-voltage power
supply PCB ASSY
Low-voltage-heater harness
Inlet
Power switch
FG harness
Note:
• Attach the FG harness outermost over the heater harness.
Hook
Tape
Hooks
Tape
Low-voltage power
supply harness
Tape
Tape
Hook
Hole
