Brother HL-5450DN Service Manual

3-57
Confidential
9.30 Fuser drive gear 39
(1) Remove the four taptite bind B M4x12 screws, and release the two hooks to remove the
main PCB shield calking ASSY from the main frame L ASSY. Then pull out the duplex
solenoid harness from the main PCB shield calking ASSY.

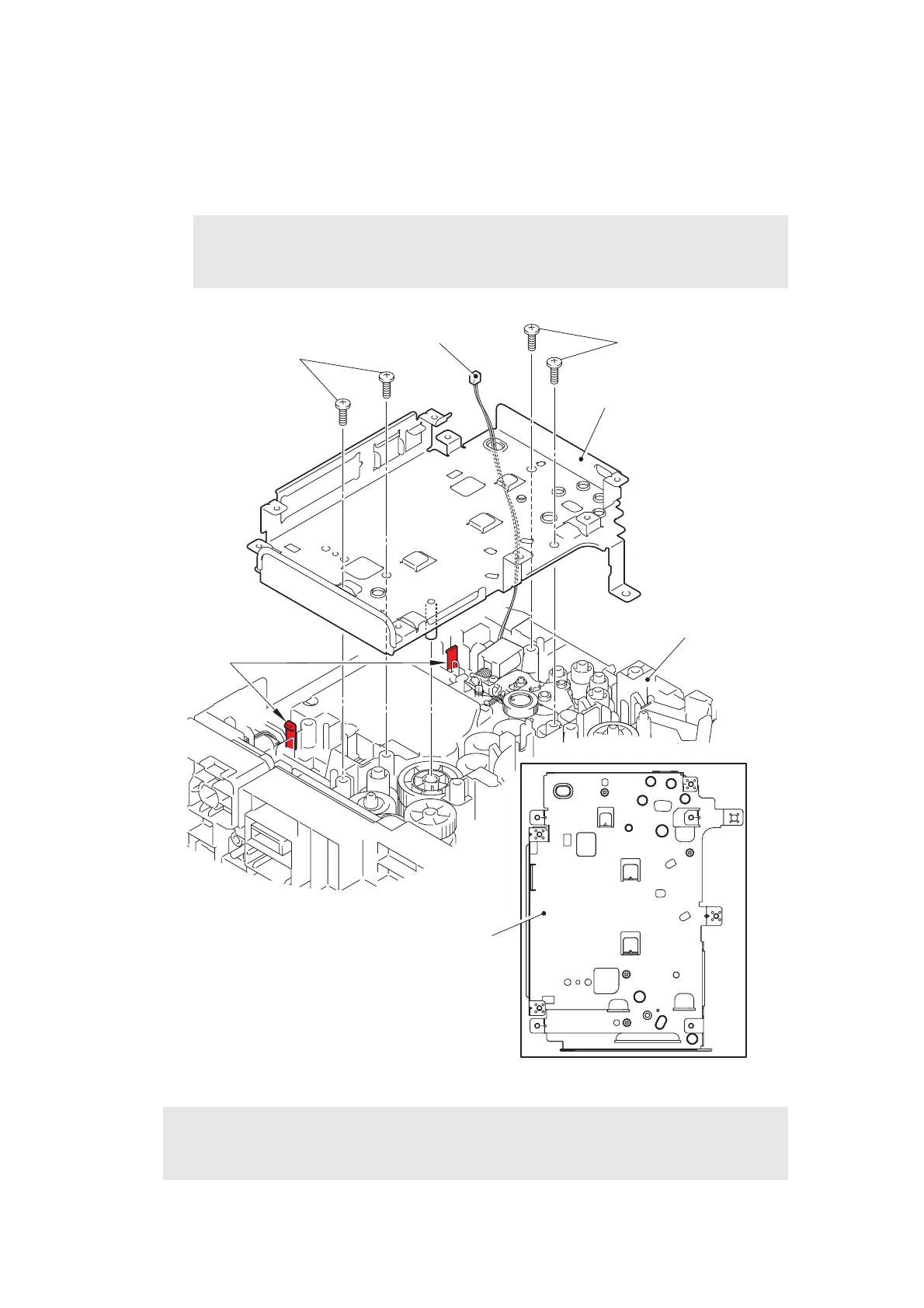

Fig. 3-58
Note:
• Do not allow the metallic gear shaft of the main PCB shield calking ASSY to face
down. Failure to observe this may cause the steel plate to bend.
Assembling Note:
• When securing the main PCB shield calking ASSY with screws, tighten the screws in
the sequence of the numbers engraved on the main PCB shield calking ASSY.
Taptite bind B M4x12
Taptite bind B M4x12
Main PCB shield calking ASSY
Main frame L ASSY
Hooks
Duplex solenoid harness
2
4
1
3
Main PCB shield calking ASSY

Brother HL-5450DN Specifications

General

Color	No
N-up printing	2, 4, 9, 16, 25
Duplex printing	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	38 ppm
Duplex print speed (black, normal quality, A4/US Letter)	9 ppm
Maximum duty cycle	- pages per month
Recommended duty cycle	1000 - 3500 pages per month
Number of print cartridges	1
Memory type	DDR2
Processor family	Star Sapphire
Maximum internal memory	320 MB
Sound power level (standby)	34 dB
Sound pressure level (printing)	59 dB
Sound pressure level (quiet mode)	54 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum input capacity	800 sheets
Total number of input trays	2
Multi-Purpose tray input capacity	50 sheets
Custom media width	76.2 - 215.9 mm
Maximum print size	216 x 356 mm
Custom media length	127 - 355.6 mm
Paper tray media types	Plain paper, Recycled paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Multi-purpose tray media types	Bond paper, Envelopes, Heavyweight paper, Labels, Plain paper, Recycled paper
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.41 W
Power consumption (standby)	4.7 W
Power consumption (printing)	665 W
Power consumption (PowerSave)	0.6 W
Package weight	11.900 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Dimensions (WxDxH)	371 x 384 x 245 mm
