Brother HL-5450DN - Registration Clutch; T1 Clutch

3-46
Confidential
9.21 Registration clutch / T1 clutch
(1) Release the registration clutch harness and the T1 clutch harness from the securing
fixtures.
(2) Remove collar 6, and remove the registration clutch from the machine.
(3) Release the hook, and remove the T1 clutch from the machine.

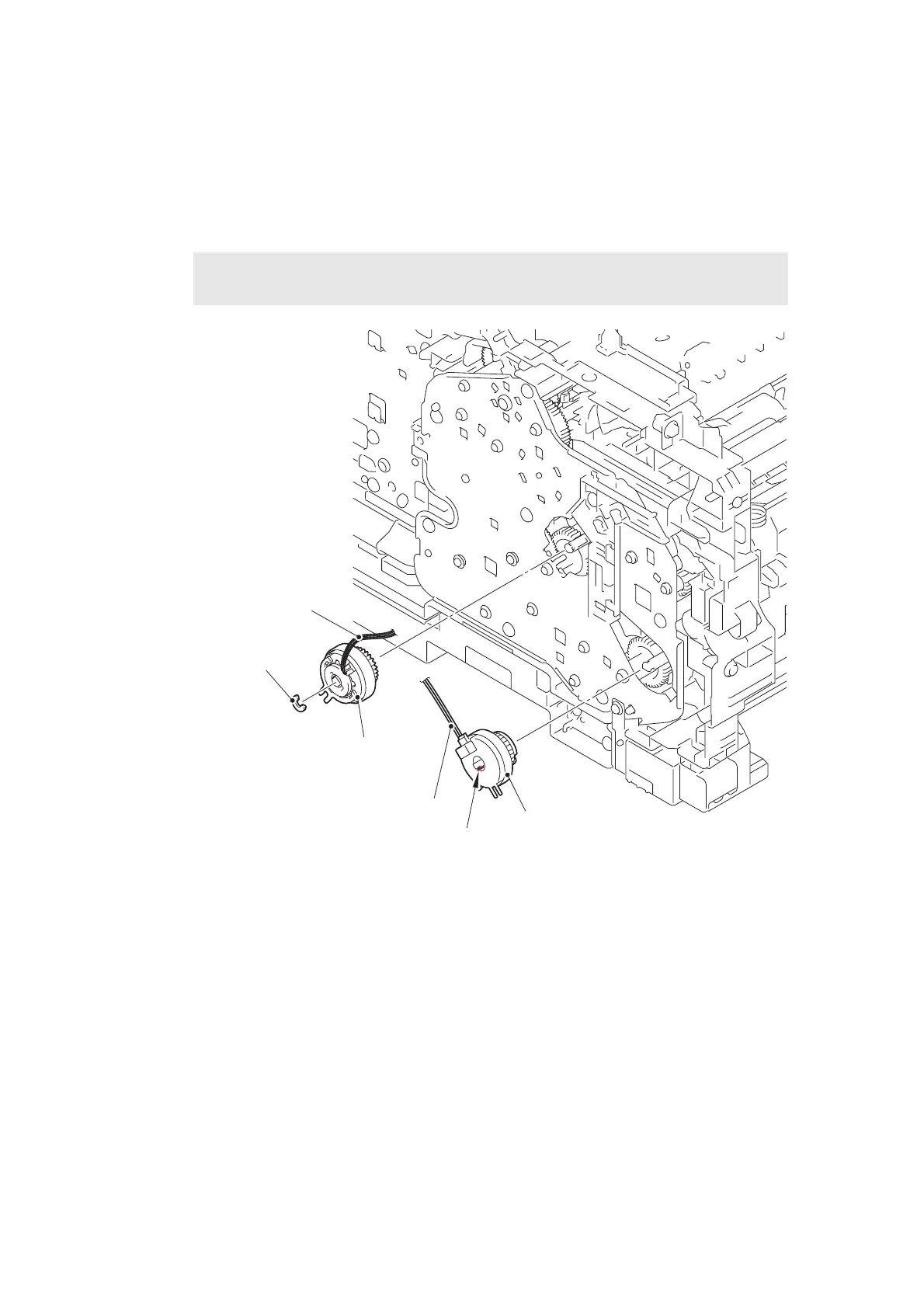

Fig. 3-47
Harness routing: Refer to “2.Relay front PCB ASSY”.
Note:
• Be careful not to damage the hook on the T1 clutch.
T1 clutch
Hook
Registration clutch
Collar 6
T1 clutch harness
Registration clutch harness
