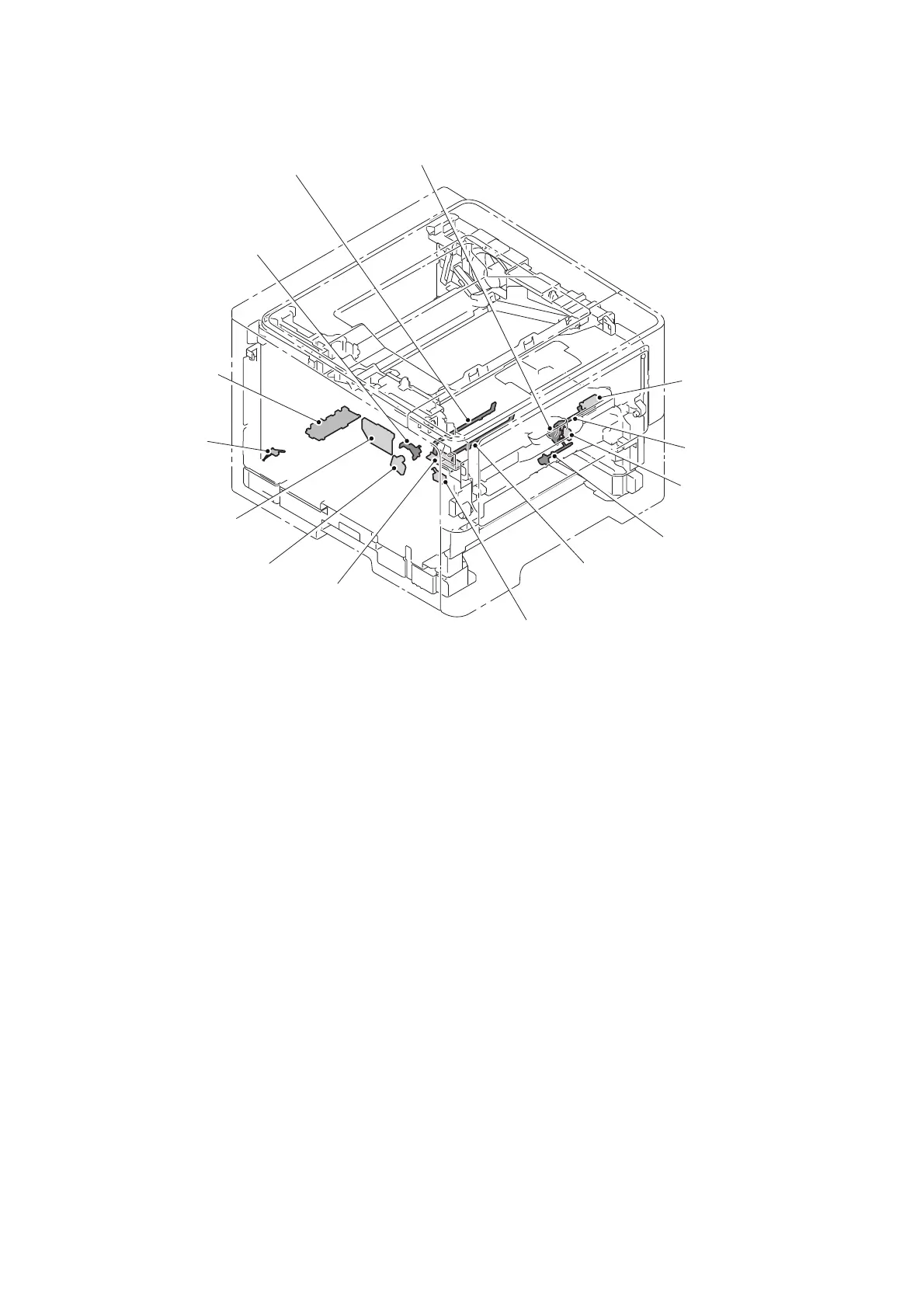

 Location of sensors
Fig. 5-5
MP paper empty actuator 2
Registration rear actuator
New toner actuator
Eject sensor
Toner sensor
Registration front/rear sensor
Registration front actuator
T1 paper feed actuator
MP paper
empty sensor
Back cover
sensor
New toner sensor
MP paper empty
actuator 1
T1 paper feed sensor
Front cover sensor
