Brother HL-5450DN Service Manual

5-52
Confidential
 Life of toner cartridge
<Method of detecting toner volume>
Toner volume is monitored by the toner sensor and by the number of rotations of the
developer roller. When the toner sensor detects that the toner has run out or when the
number of rotations of the developer roller reaches the limit, "Replace Toner" is displayed for
LCD models, or the Toner LED and Error LED light for LED models.
• Detection by toner sensor
The machine is equipped with a function to detect the remaining toner by checking the
level at which the toner in the cartridge obstructs light from the transmission light sensor.
• Detection by number of rotations of developer roller
The machine is equipped with a function to detect the limit of the number of rotations of the
developer roller before the roller becomes abraded and unusable.
<Relationship between printable pages of toner cartridge and remaining toner>
The table below shows the life of toner cartridges, assuming that the print pattern specified by
ISO/IEC 19752 is printed. (Point
2 in the figure above)
Memo:
• When the number of rotations of the developer roller reaches the limit, a message
prompting the user to replace the toner cartridge appears even if some toner
remains.
Toner cartridge Printable pages
Starter 2,000
Standard 3,000
High 8,000
Super high 12,000

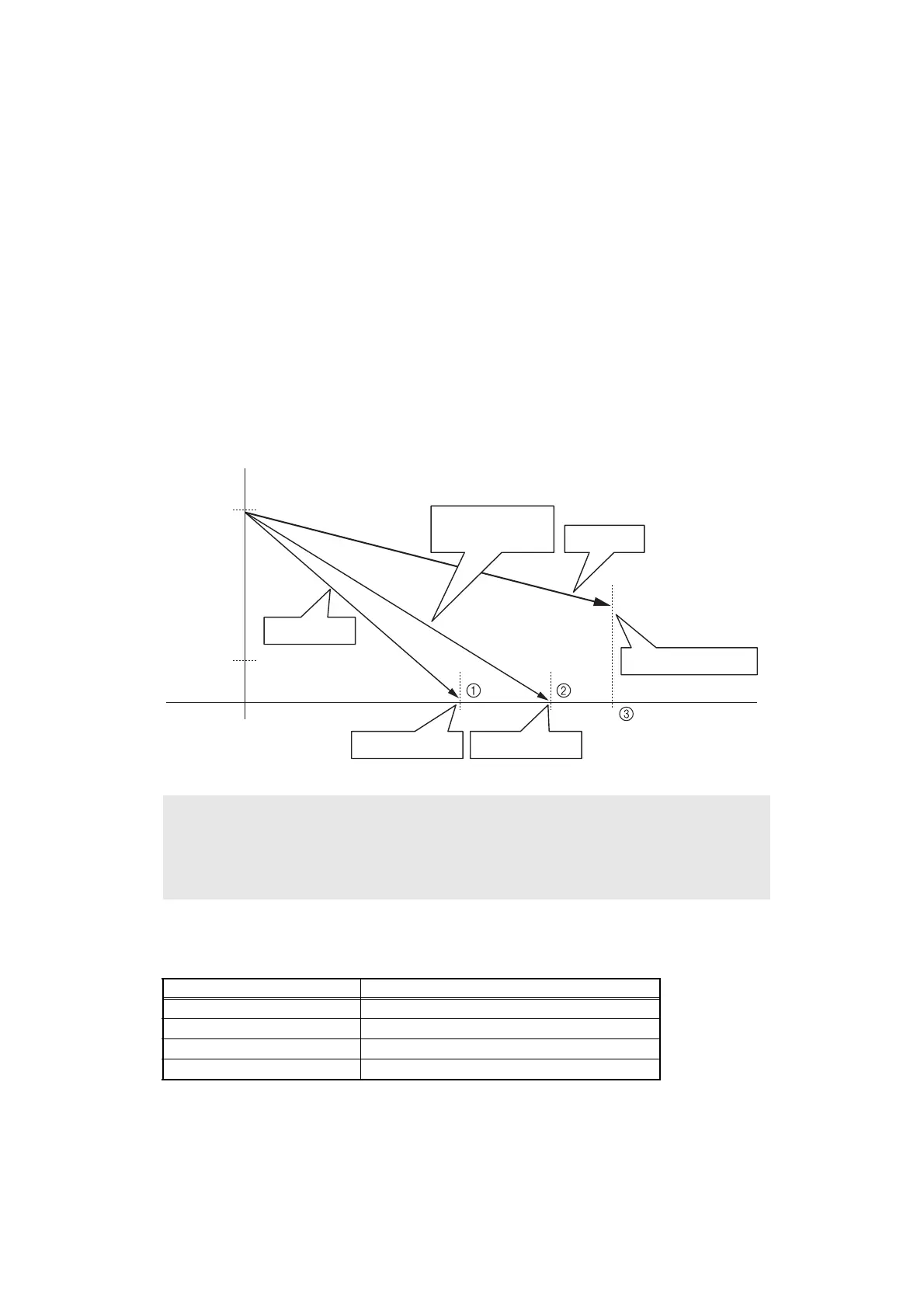

Toner life
Full
Low
Empty
pages
Cartridge Life End
Toner EmptyToner Empty
Low-duty
High-duty
Normal-duty
(ISO/IEC19752)

Brother HL-5450DN Specifications

General

Color	No
N-up printing	2, 4, 9, 16, 25
Duplex printing	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	38 ppm
Duplex print speed (black, normal quality, A4/US Letter)	9 ppm
Maximum duty cycle	- pages per month
Recommended duty cycle	1000 - 3500 pages per month
Number of print cartridges	1
Memory type	DDR2
Processor family	Star Sapphire
Maximum internal memory	320 MB
Sound power level (standby)	34 dB
Sound pressure level (printing)	59 dB
Sound pressure level (quiet mode)	54 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum input capacity	800 sheets
Total number of input trays	2
Multi-Purpose tray input capacity	50 sheets
Custom media width	76.2 - 215.9 mm
Maximum print size	216 x 356 mm
Custom media length	127 - 355.6 mm
Paper tray media types	Plain paper, Recycled paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Multi-purpose tray media types	Bond paper, Envelopes, Heavyweight paper, Labels, Plain paper, Recycled paper
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.41 W
Power consumption (standby)	4.7 W
Power consumption (printing)	665 W
Power consumption (PowerSave)	0.6 W
Package weight	11.900 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Dimensions (WxDxH)	371 x 384 x 245 mm
