Brother HL-5450DN Service Manual

7-15
Confidential
2.6 Paper feeding kit 2

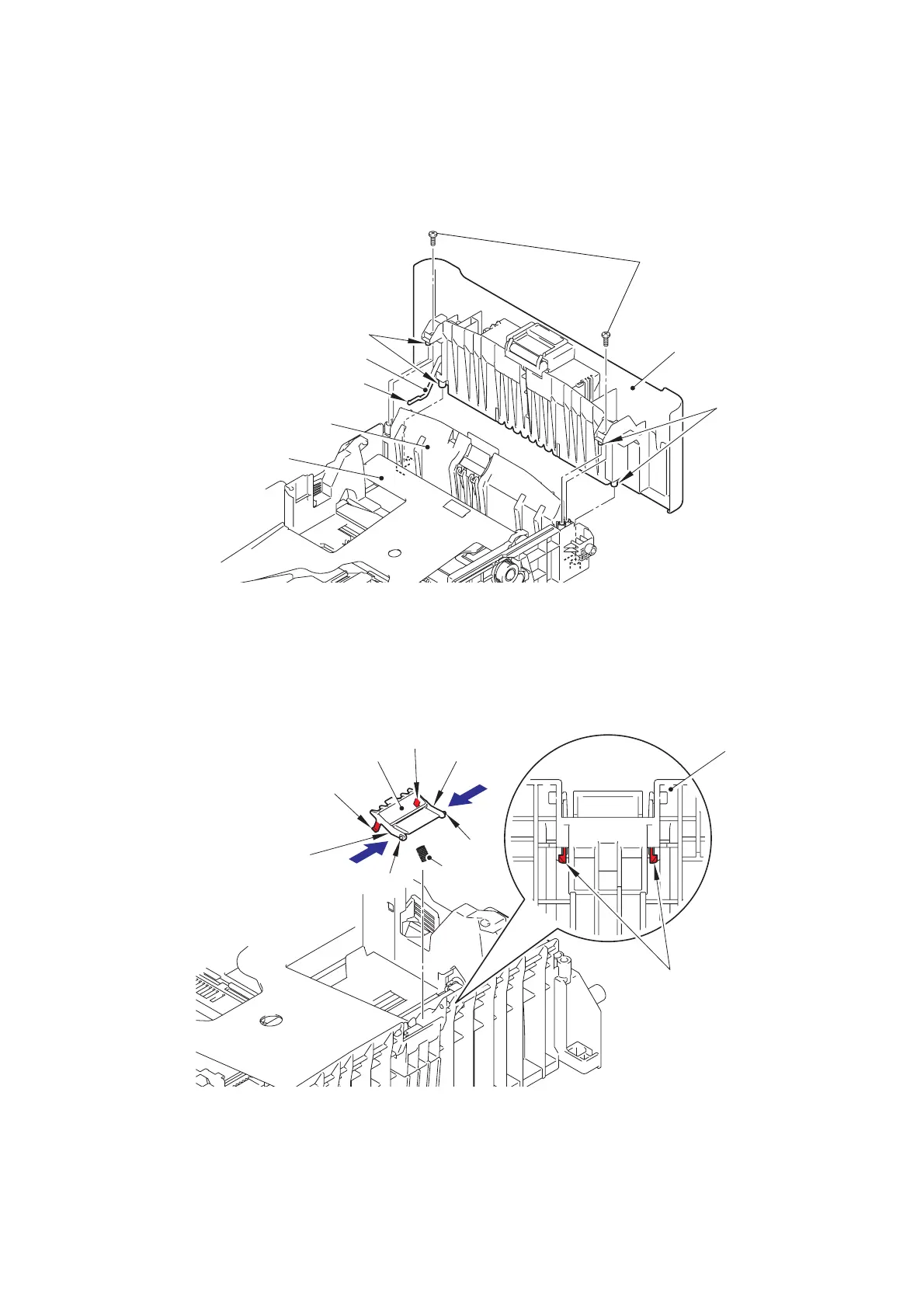

(1) Remove the two taptite bind B M4x12 screws from the paper tray 2.
(2) Lift the plate to remove "A" on the T2 tray indicator from the plate, remove the four
bosses, and then remove the T2 tray cover ASSY from the paper tray 2.
Fig. 7-20
(3) Release the two hooks on the T2 separation pad ASSY from the paper tray 2.
(4) Push both arms of the T2 separation pad ASSY in the direction of the arrows to remove
both pins, and then remove the T2 separation pad ASSY from the paper tray 2.
(5) Remove the T2 separation pad spring from the T2 separation pad ASSY.
Fig. 7-21
Taptite bind B M4x12
T2 tray indicator
Paper tray 2
“A”
Plate
T2 tray cover ASSY
Bosses
Bosses
T2 separation pad ASSY
Hook
Arm
T2 separation
pad spring
Hooks
Paper tray 2
Arm
Pin
Pin
Hook

Brother HL-5450DN Specifications

General

Color	No
N-up printing	2, 4, 9, 16, 25
Duplex printing	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	38 ppm
Duplex print speed (black, normal quality, A4/US Letter)	9 ppm
Maximum duty cycle	- pages per month
Recommended duty cycle	1000 - 3500 pages per month
Number of print cartridges	1
Memory type	DDR2
Processor family	Star Sapphire
Maximum internal memory	320 MB
Sound power level (standby)	34 dB
Sound pressure level (printing)	59 dB
Sound pressure level (quiet mode)	54 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum input capacity	800 sheets
Total number of input trays	2
Multi-Purpose tray input capacity	50 sheets
Custom media width	76.2 - 215.9 mm
Maximum print size	216 x 356 mm
Custom media length	127 - 355.6 mm
Paper tray media types	Plain paper, Recycled paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Multi-purpose tray media types	Bond paper, Envelopes, Heavyweight paper, Labels, Plain paper, Recycled paper
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.41 W
Power consumption (standby)	4.7 W
Power consumption (printing)	665 W
Power consumption (PowerSave)	0.6 W
Package weight	11.900 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Dimensions (WxDxH)	371 x 384 x 245 mm
