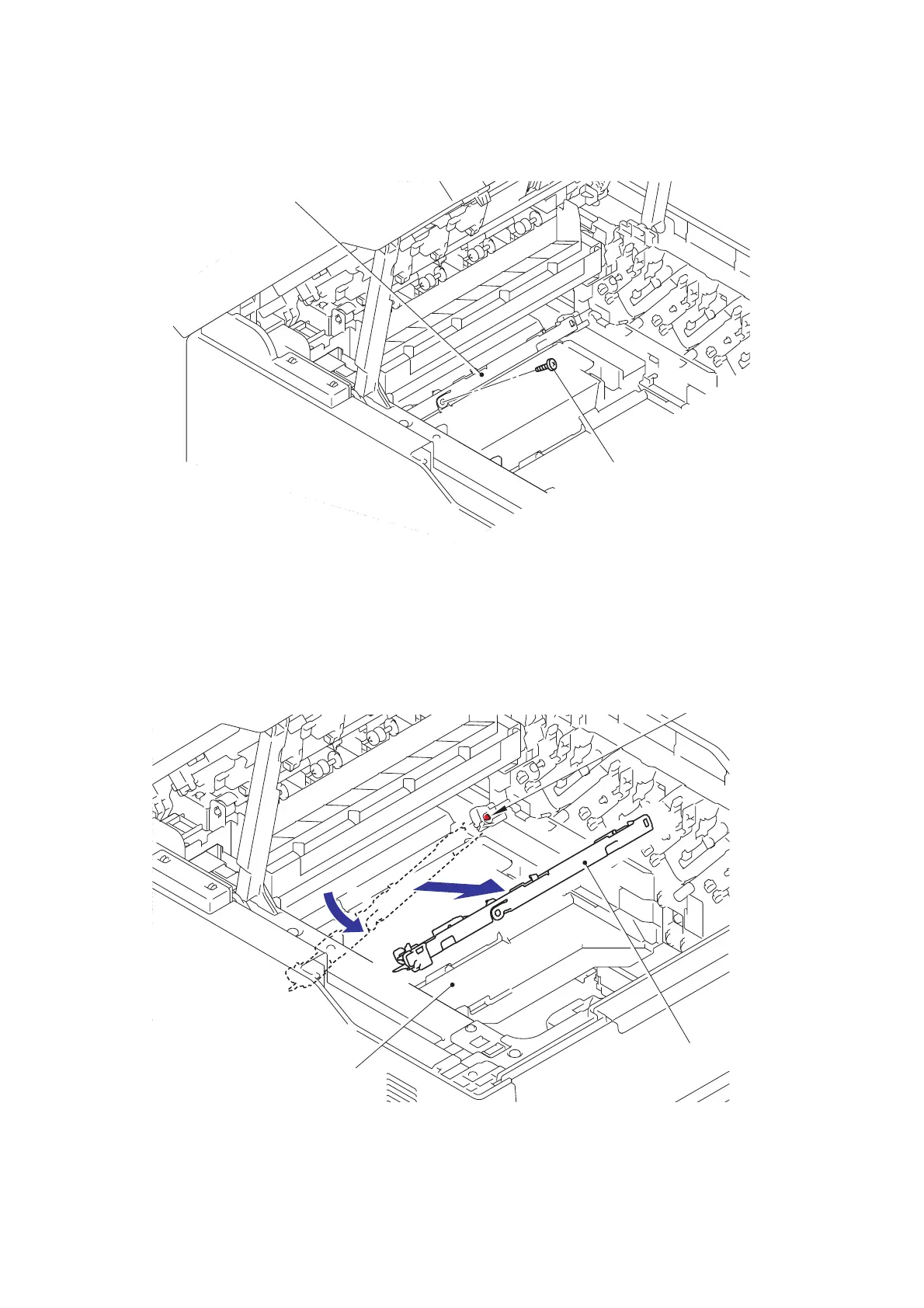

(3) Remove the Taptite bind S M3x5 screw from the Registration sensor ASSY.
Fig. 3-16
(4) Pull the left side of the Registration sensor ASSY in the direction of 4a and release the
Hook on the right side to remove the Registration sensor ASSY.
Fig. 3-17
Registration sensor ASSY
Taptite bind S M3x5
Hook
Main body
Registration sensor ASSY
4b
4a
