3-44
Confidential
8.11 Joint Cover Side L

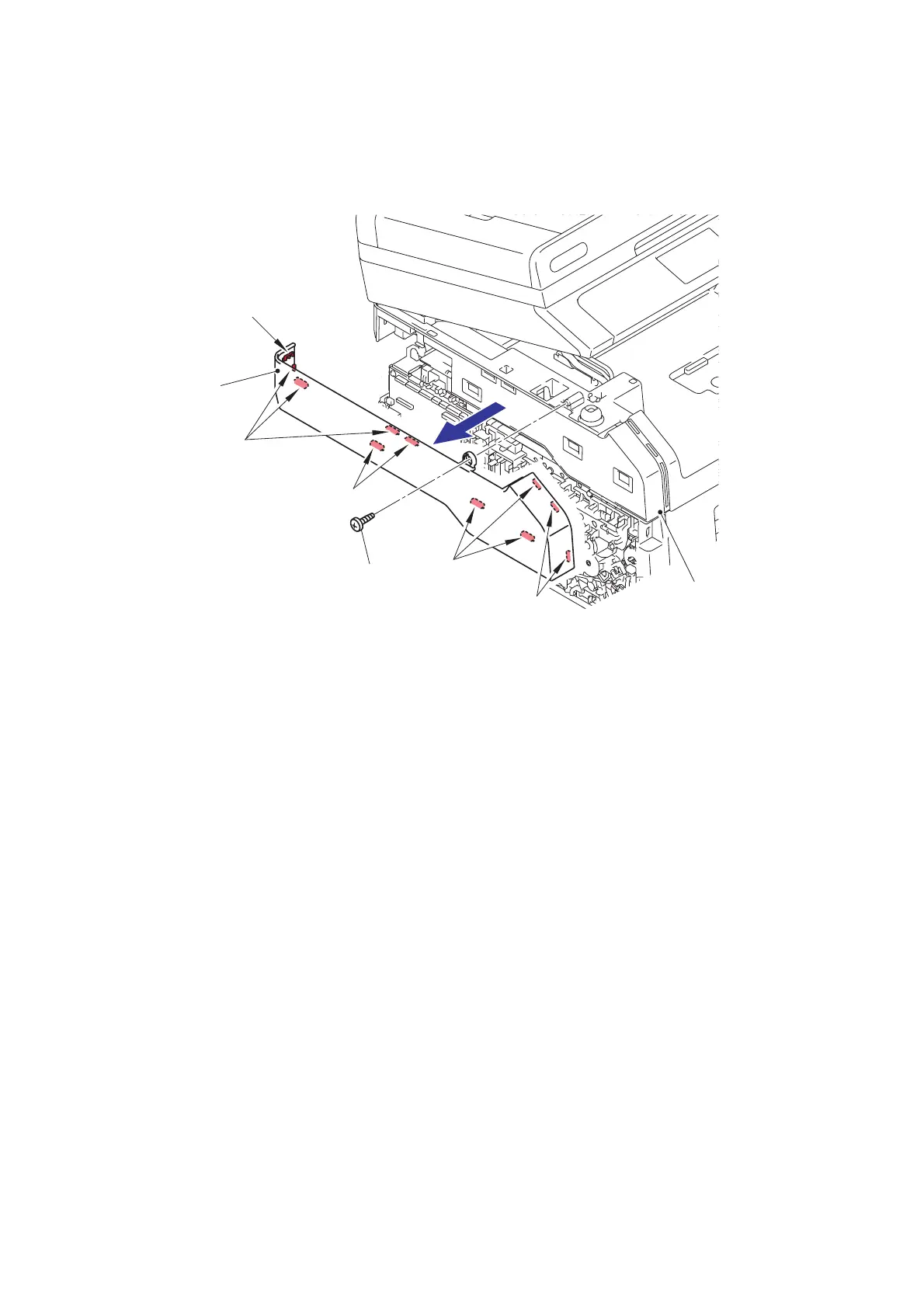

(1) Remove the Taptite bind B M4x12 screw. Release eleven Hooks to remove the Joint
cover side L from the Joint cover ASSY.
Fig. 3-29
Joint cover side L
Hook
Hook
Hook
Hook
Hook
Taptite bind B M4x12
Joint cover ASSY
<Left side>
