Brother MFC-9140CDN - ADF Separation Pad Spring;Adf Separation Pad Holder ASSY

3-59
Confidential
8.23 ADF Separation Pad Spring/
ADF Separation Pad Holder ASSY

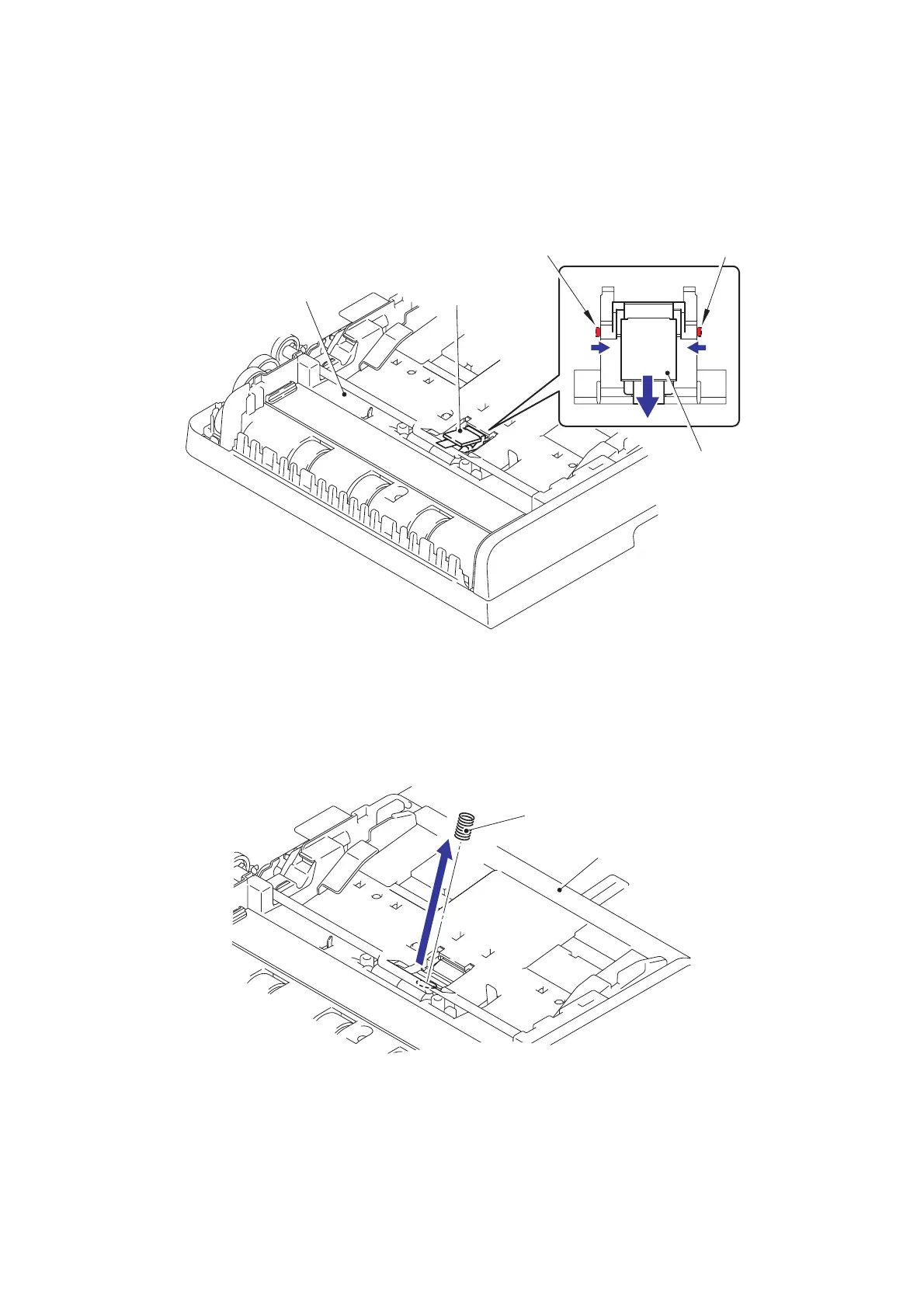

(1) Remove the two Pins to remove the ADF separation pad holder ASSY from the Upper
ADF chute.
Fig. 3-56
(2) Remove the ADF separation pad spring from the Upper ADF chute.
Fig. 3-57
Pin Pin
Upper ADF chute
ADF separation pad
ADF separation pad
holder ASSY
1a 1a
1b
holder ASSY
Upper ADF chute
ADF separation pad spring
