Brother MFC-9140CDN - Main Drive Unit

3-135
Confidential
8.57 Main Drive Unit

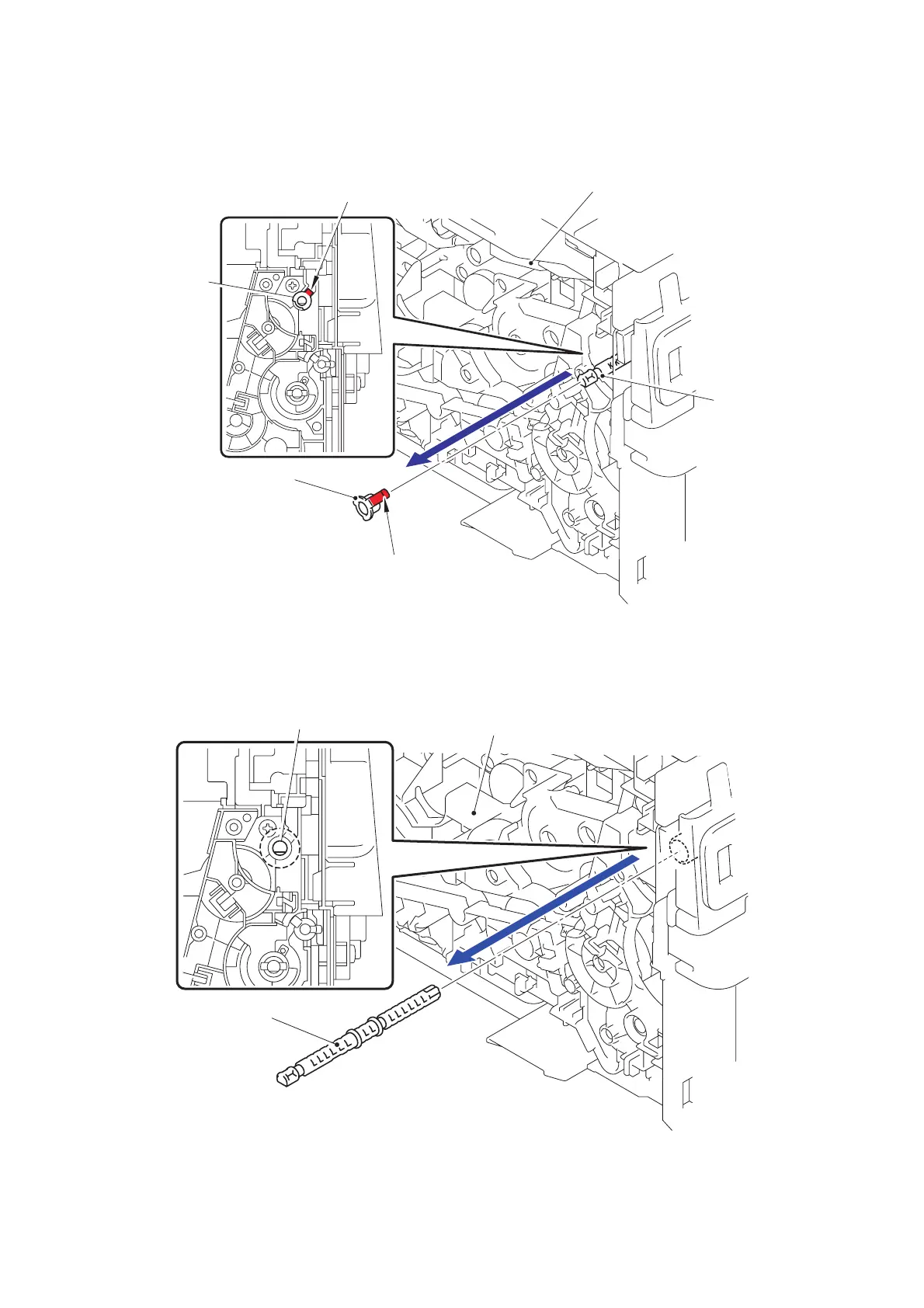

(1) Release the Hook to remove the Collar 6 from the PF registration drive joint.
Fig. 3-189
(2) Remove the PF registration drive joint from the Side frame L ASSY.
Fig. 3-190
Hook
PF registration
Collar 6
drive joint
Hook
PF registration
drive joint
Side frame L ASSY
<Left side>
PF registration drive joint
Side frame L ASSY
<Left side>
PF registration drive joint
