8.20 ADF Cover ASSY
(1) Open the ADF cover ASSY.
(2) Remove the two Pins to remove the ADF cover ASSY from the ADF unit.

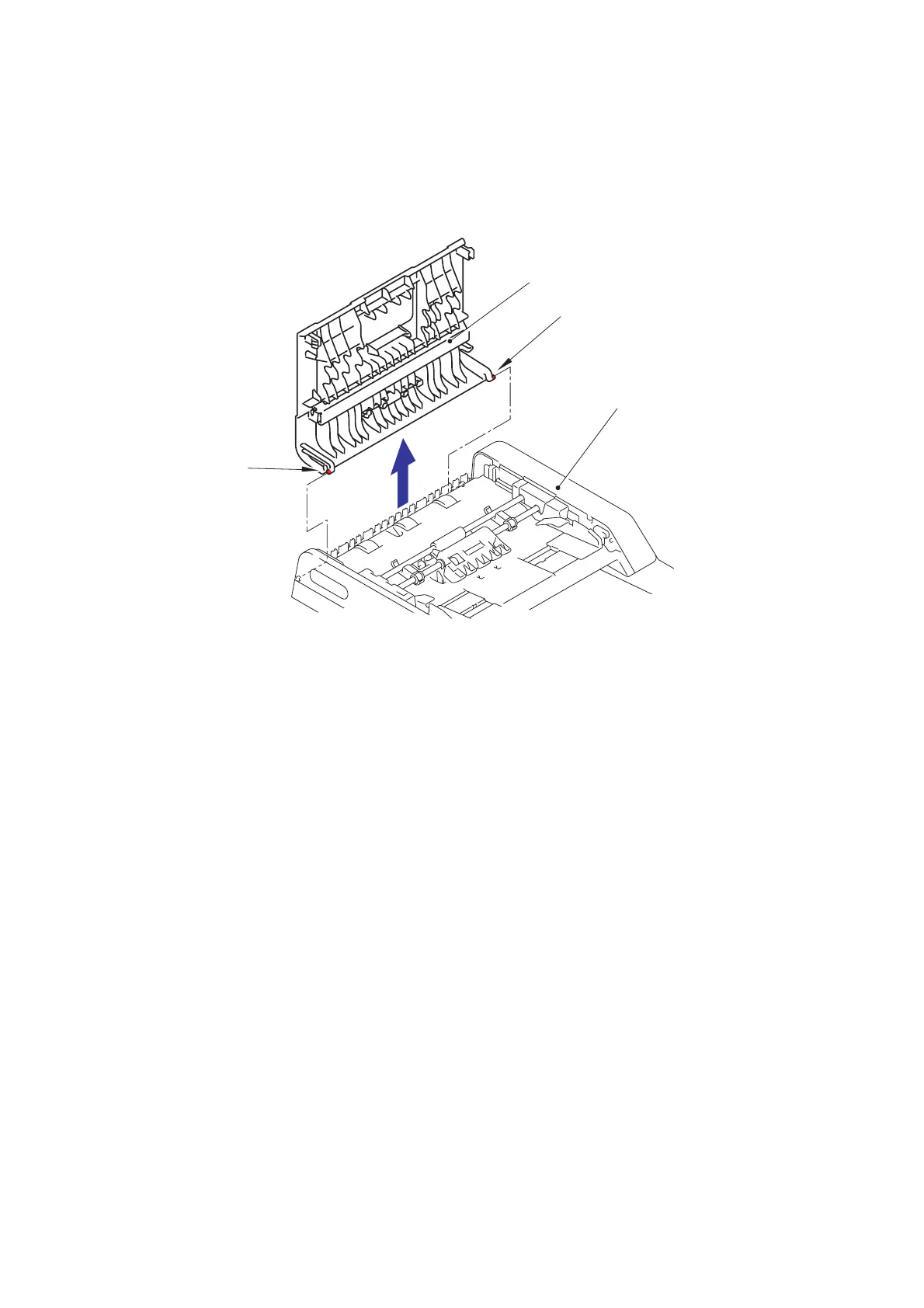

Fig. 3-50
ADF cover ASSY
Pin
Pin
ADF unit
