Brother MFC-9140CDN Service Manual

5-2
Confidential
1.2 How to Enter the End User-accessible Maintenance Mode
Basically, the maintenance-mode functions listed in the next page should be accessed by
service personnel only. However, you can allow end users to access some of these under the
guidance of service personnel by phone, for example. The end user-accessible functions are
shaded in the table given on the next page. (codes 06, 09, 10, 11, 12, 25, 41, 43, 45, 52, 53,
54, 61, 66, 68, 71, 72, 77, 80, 82, 87, 88 and 91)
<Operating procedure>
(1) Hold down the Home key for about 5 seconds while the machine is in the ready state.

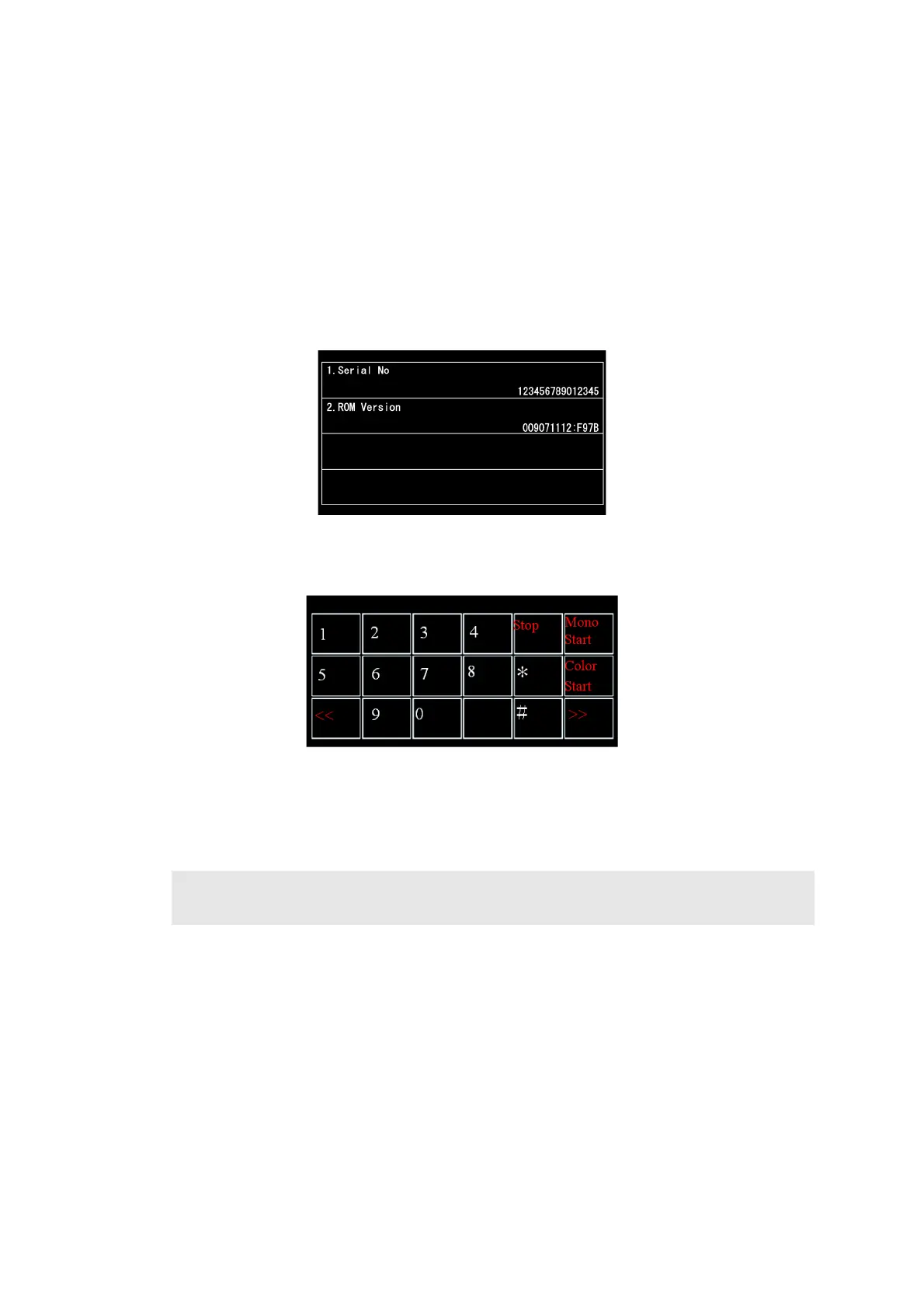

The following screen is displayed on the LCD.
(2) Hold down the blank space at the bottom of the LCD for about 2 seconds. The following
screen is displayed on the LCD.
(3) Press the *, 0, and # keys on the LCD in this order. The machine gets ready for the input
of a function code. Enter the function code you want to use.
(4) When each of the maintenance mode functions is completed, the machine automatically
returns to the ready state.
Note:
To cancel an operation and return the machine to the ready state, press the Stop key.
