3-56
Confidential
8.21 Gear Cover

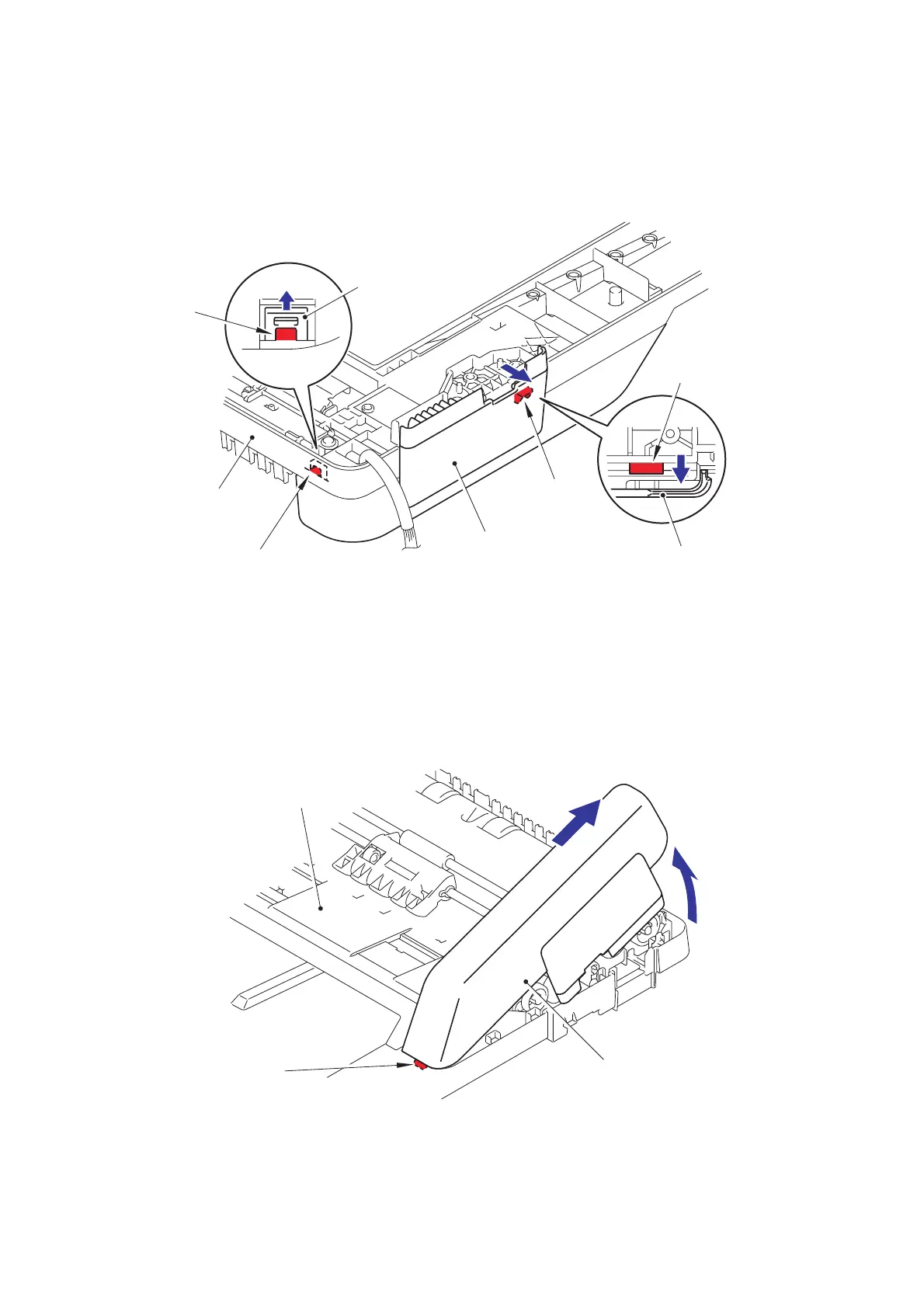

(1) Release the two Hooks of the ADF unit.
Fig. 3-51
(2) Remove the Gear cover from the ADF unit.
Fig. 3-52
ADF unit
Hook
Hook
Hook
Hook
ADF unit
Gear cover
Gear cover
ADF unit
Hook
Gear cover
2b
2a
